Index Description
3 Media tray
4 DVD drive
5 Bezel
6 Filler, 2.5" hard disk drive
7 12-disk disk storage module
8 Filler, 3.5" disk storage module
9 Filler, disk storage module
10 6-disk disk storage module
Consumable parts (parts that are purchased separately) are not covered by the IBM
Statement of Limited Warranty. The following consumable parts are available for
purchase from the retail store.
Index Description Part number
Battery backup unit 45W5002

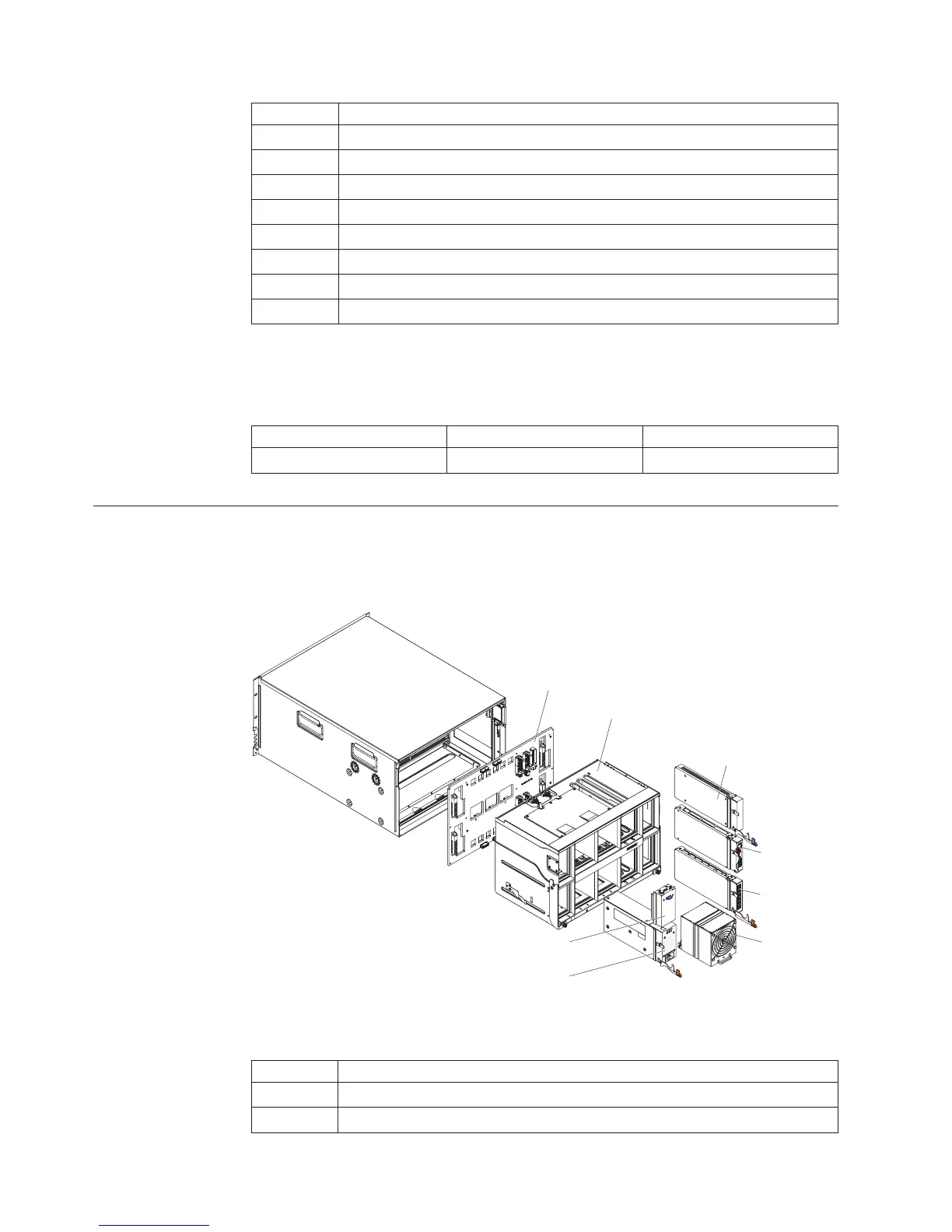

Rear view parts listing
The rear of the BladeCenter S chassis contains components such as the
management module, fan modules, and I/O modules.
1
2
3
4
5
6
7
8
See the IBM BladeCenter S Types 7779 and 8886 Problem Determination and Service
Guide for part numbers.
Index Description
1 Midplane
2 Shuttle (with card and cable assembly)
58 BladeCenter S Type 7779/8886: Installation and User's Guide
