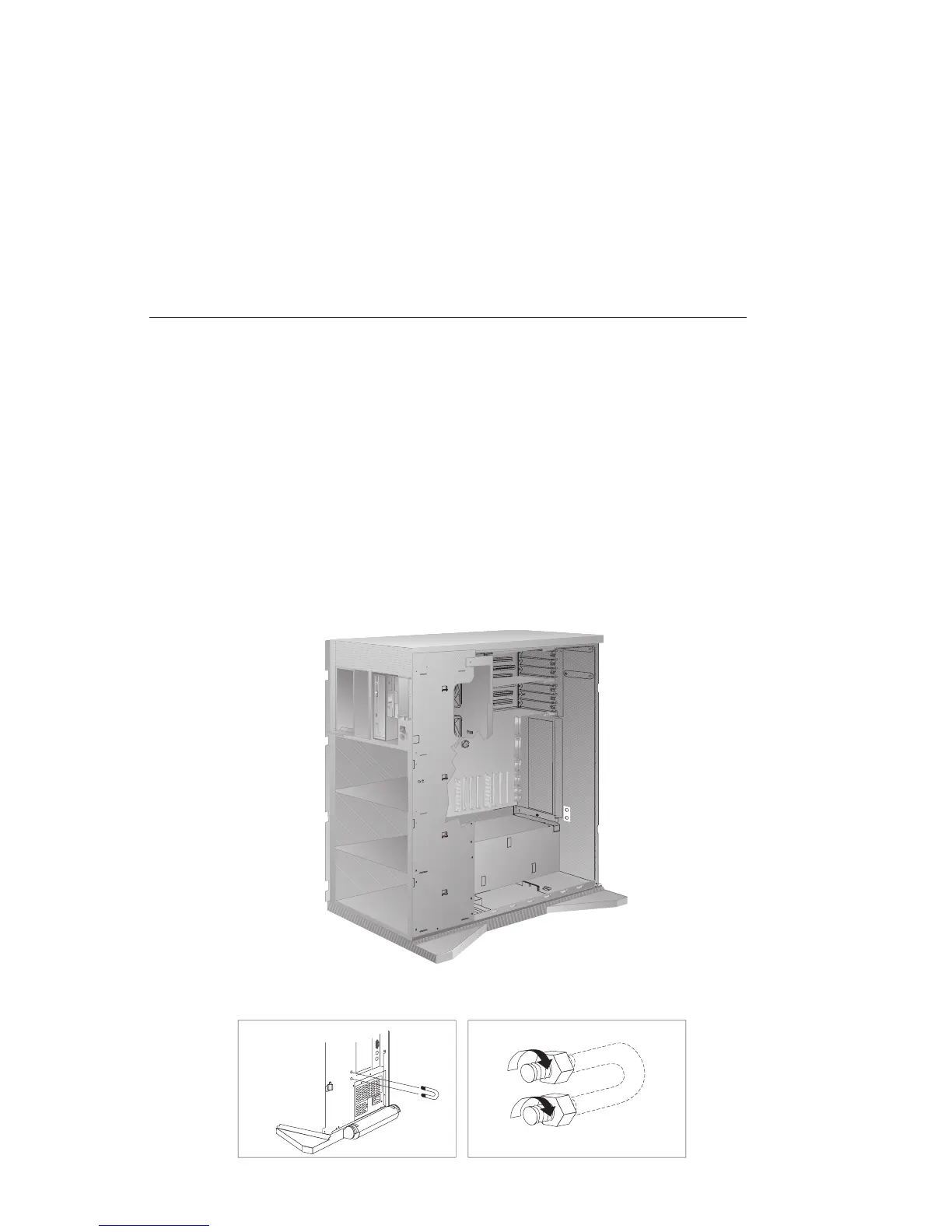

Installing a U-Bolt
Before you begin, be sure you have:
A 19 mm (3/4 in.) U-bolt or wire rope (similar to National Manufacturing No.
3230, STK No. 176-735).
A security cable.
A lock, such as a combination lock or padlock.
Remove the system covers as described in “Removing Both the Front and Side
Covers” on page 5-10.
1. Install the U-bolt:
a. Use a screwdriver to remove the two plastic inserts, if present, from the
U-bolt opening in the rear panel.
b. Insert the U-bolt through the holes and secure it in place with the nuts.
Chapter 5. Installing Options 5-91
