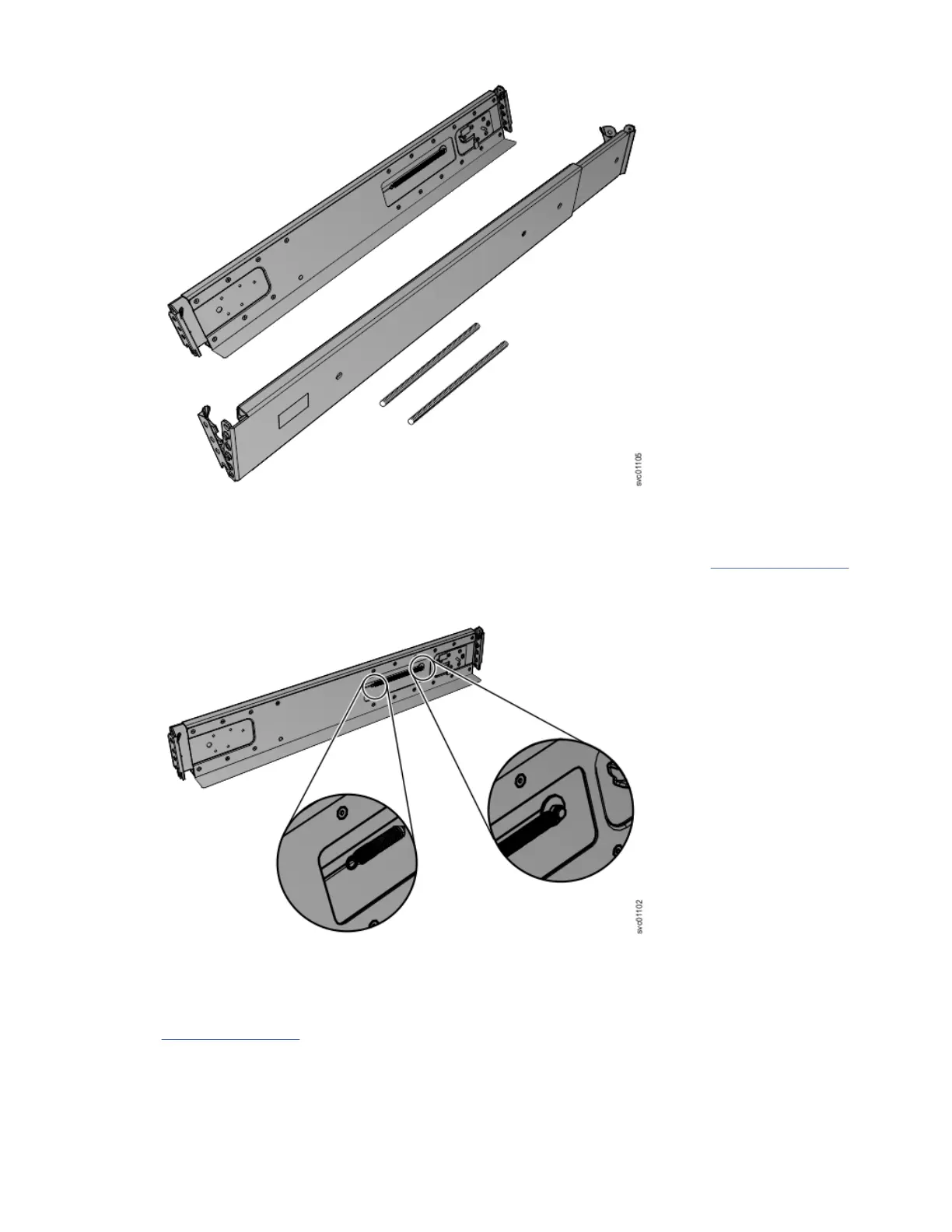

Figure 5. Enclosure support rails
2. Install a spring on the rail rail.
a) Push one looped end of a spring over one stud on the inside of the rail. (See Figure 6 on page 22.)
b) Stretch the spring slightly and push the other looped end of the spring onto the other stud on the
inside of the rail.
Figure 6. Installing the rail spring
3. Working at the front of the rack cabinet, identify the two standard rack units (2U) of space in the rack
into which you want to install the support rails.
Figure 7 on page 23 shows two rack units with the front mounting holes identied.
22
IBM FlashSystem 5000 : FlashSystem 5000 Quick Installation Guide
