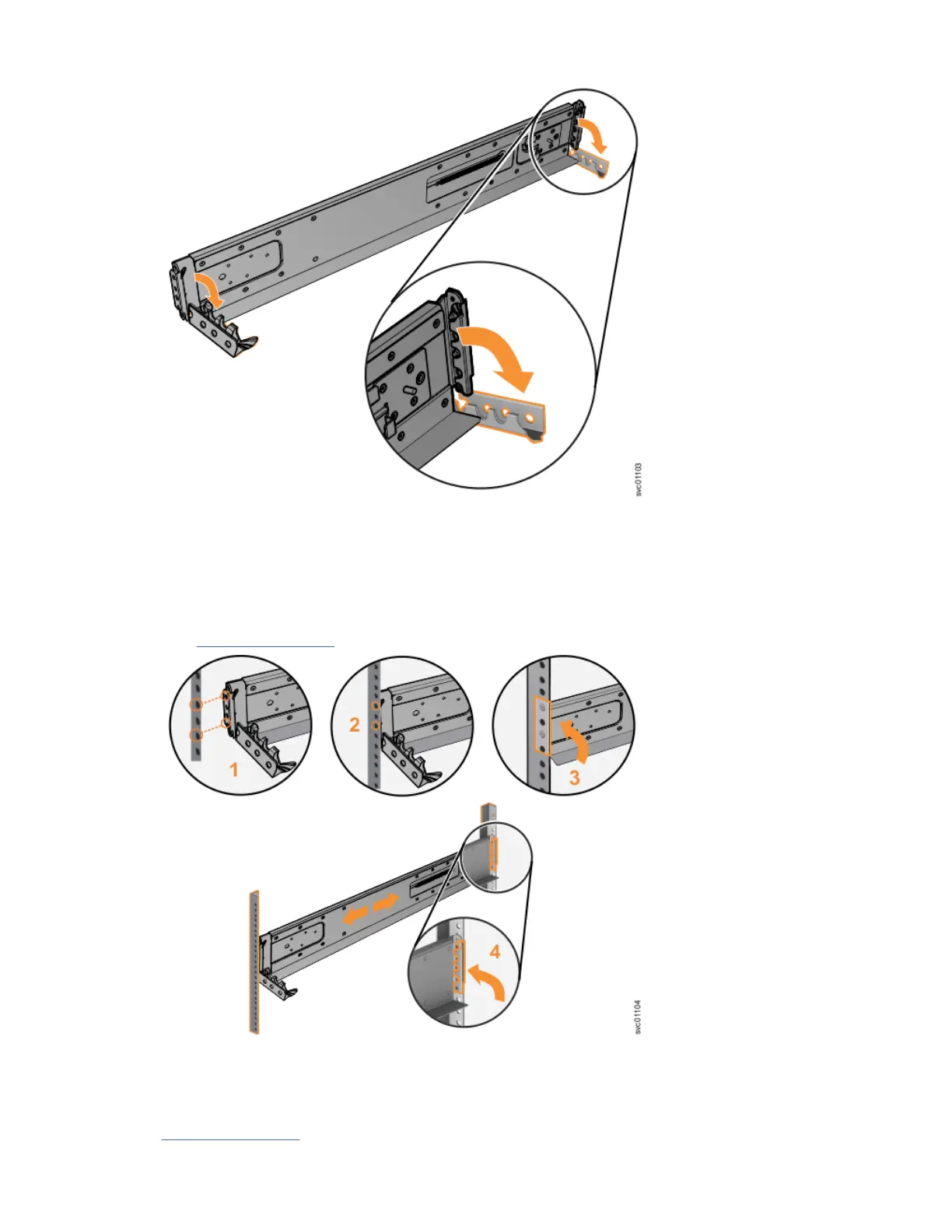

Figure 8. Opening the hinge brackets
6. Align the holes in the rail bracket with the holes on the front and rear rack cabinet flanges.
Ensure that the rails are aligned on the inside of the rack cabinet.
7. On the rear of the rail, press the two bracket pins into the holes in the rack flanges.
8. Close the rear hinge bracket to secure the rail to the rack cabinet flange.
(See Figure 9 on page 24.)
Figure 9. Closing the hinge brackets
9. On the front of the rail, press the two bracket pins into the holes in the rack flanges.
10. Close the front hinge bracket to secure the rail to the rack cabinet flange.
Figure 9 on page 24 shows an example.
24
IBM FlashSystem 5000 : FlashSystem 5000 Quick Installation Guide
