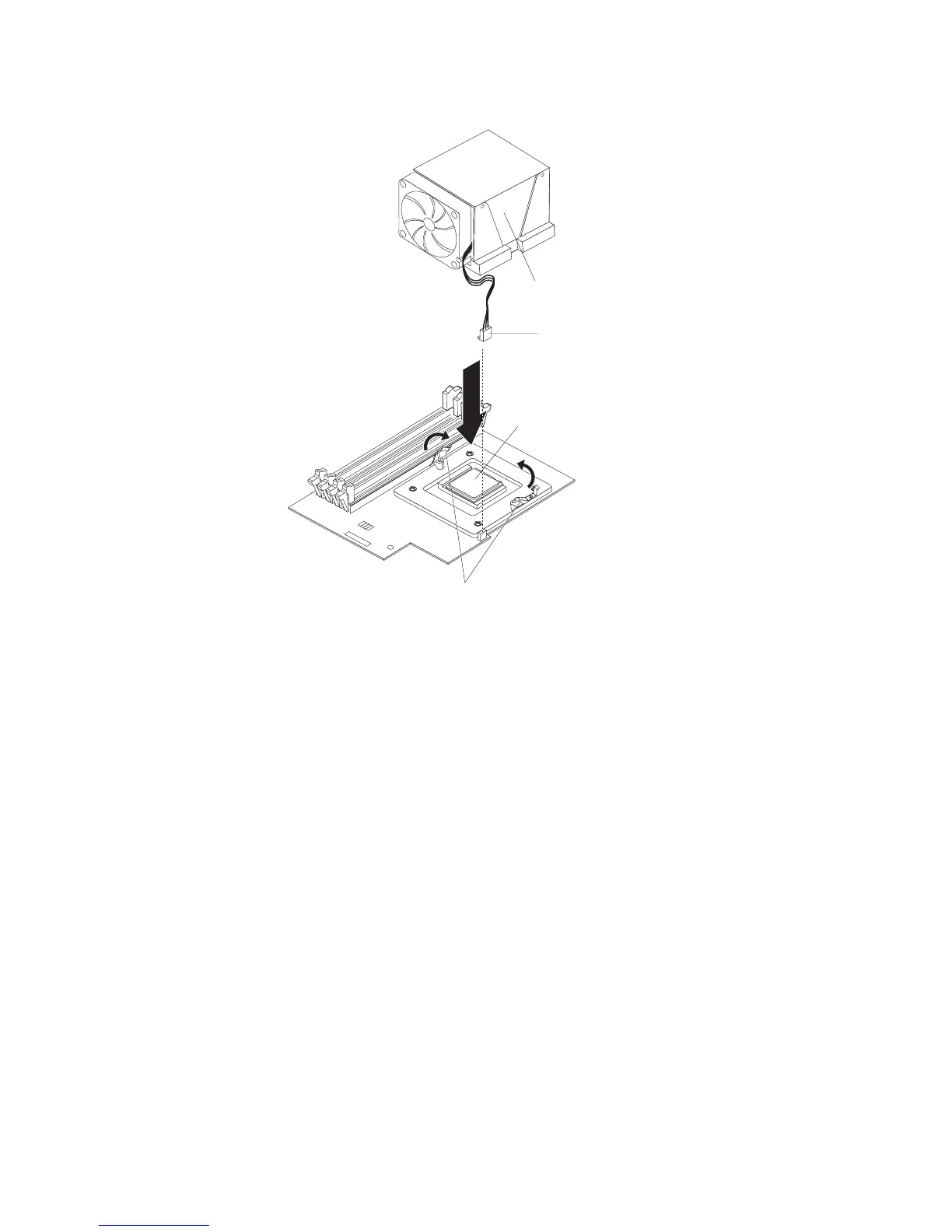

15. Install the fan sink:
Microprocessor
Fan sink
Fan sink
cable
Retention
spring clips
a. Remove the fan sink from its package and remove the cover from the
bottom of the fan sink. Make sure that the thermal material is still on the
bottom of the fan sink.
b. Remove the release liner and orient the fan sink above the microprocessor.
c. Connect the fan sink cable to the microprocessor fan connector on the
microprocessor board; then, press the fan sink into place (see the
illustration in “Optional microprocessor board connectors” on page 13 for
the location of the connector).
d. Raise the retention spring clips into position on each side of the fan sink.
Start both screws into the fan-sink socket; then, tighten both screws. Do
not overtighten the screws.
16. Install at least one pair of supported DIMMs on the microprocessor board. See
“Installing memory modules” on page 30 for information about the installation
order and the type of supported DIMMs.
17. Install the microprocessor air baffle.
36 IntelliStation A Pro Type 6224: Installation Guide
