Table 1. Final Assembly, Front - Models 830 and SB2 with FC 9074
Index Part number Units Description
1 24L0775 1 Shield, EMC
2 44H8681 3 Screw
3 04N3345 2 Air moving device (AMD) assembly (BP1 and BP2)
4 44H8681 4 Screw
5 04N2793 1 Air moving device (AMD) mounting assembly
6 1621811 4 Screw, M4 (10mm)

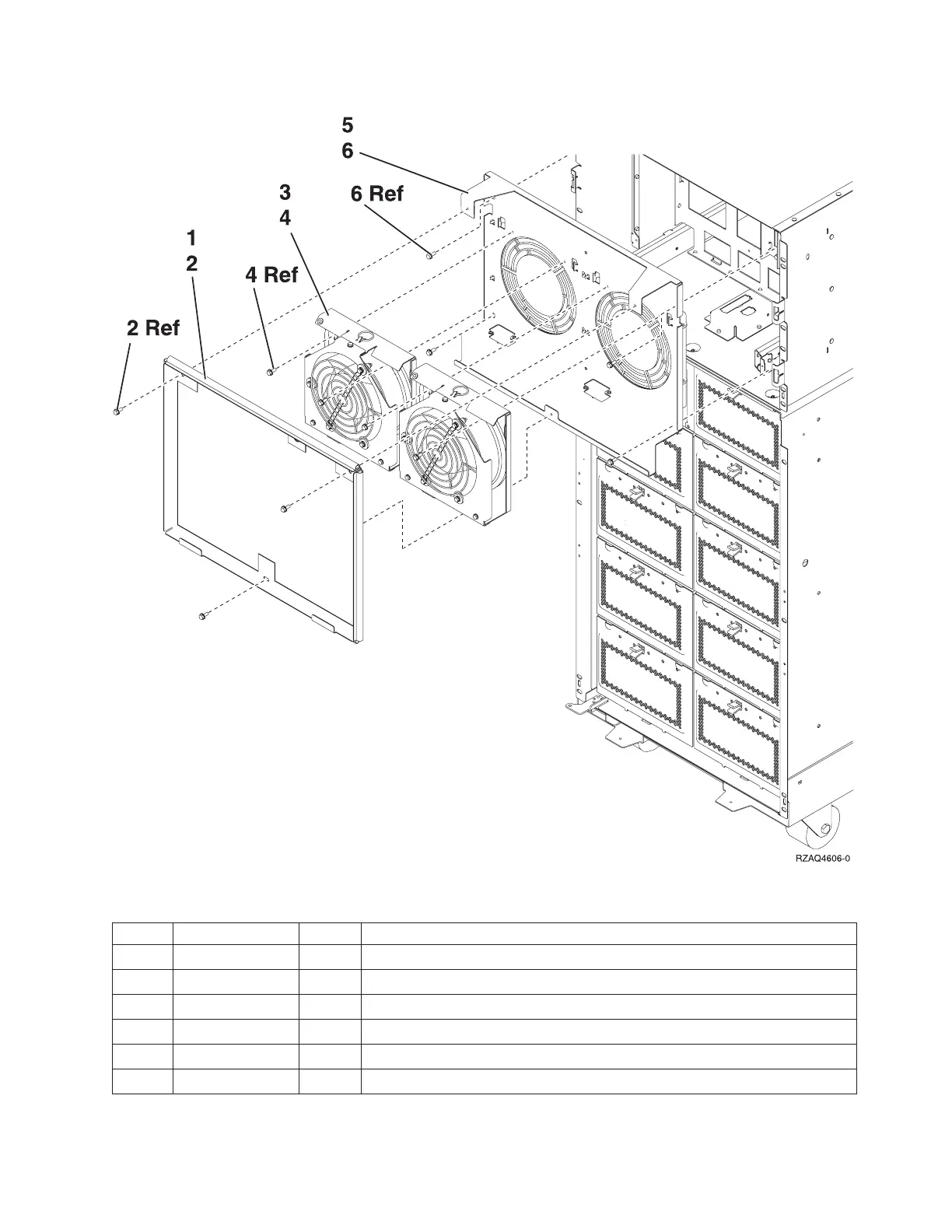

Figure 2. Final Assembly, Front - Models 830 and SB2 with FC 9074 (continued)
