Motherboard Users Guide

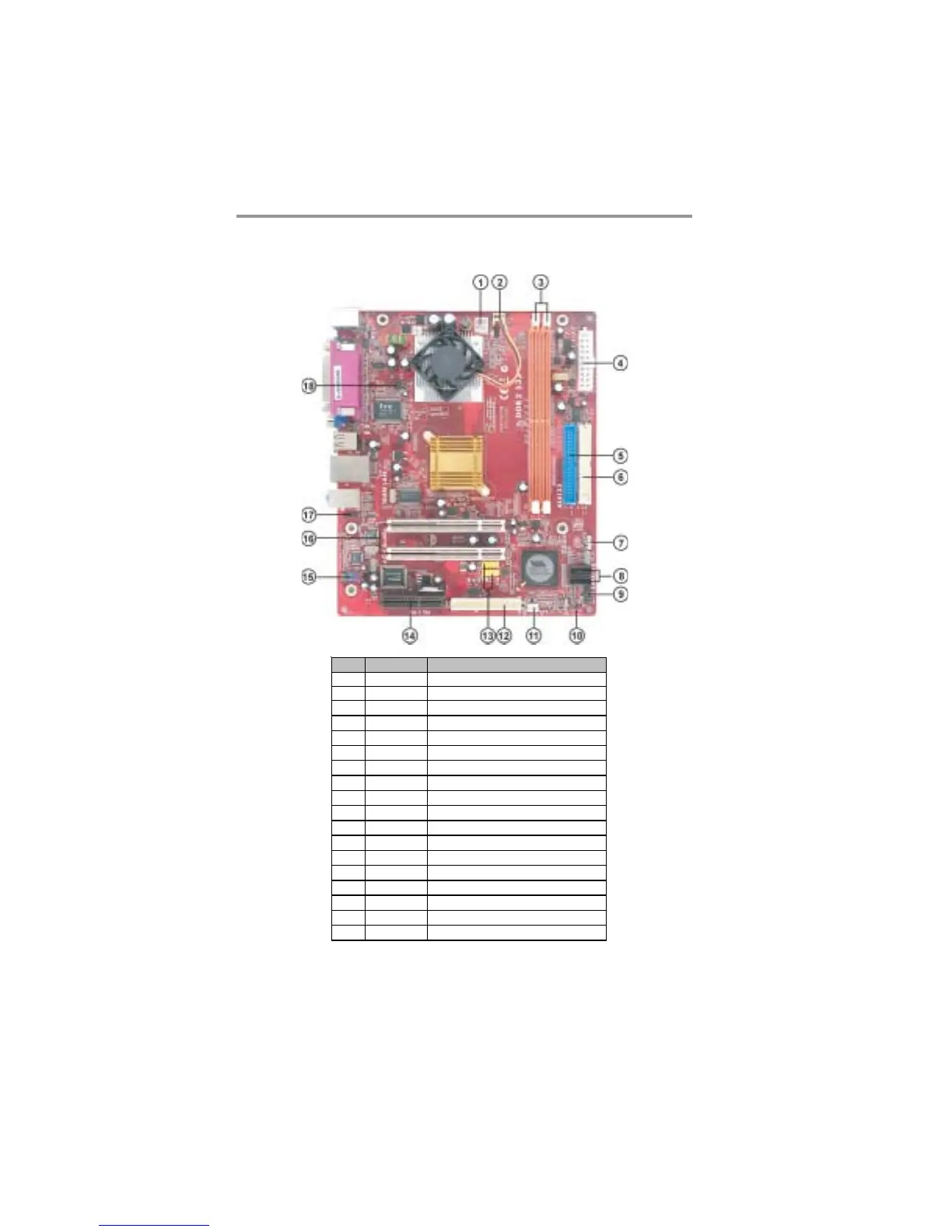

Motherboard Components

ITEM LABEL COMPONENTS

1 PWR2 Standard 4-Pin ATX Pow er connector

2 CPU_FAN1 CPU Fan connector (3PIN)

3 DDRII1~2 240-pin DDR2 SDRAM sockets

4 PWR1 Standard 20-Pin ATX Pow er connector

5 IDE1 Primary IDE connector

6 IDE2 Secondary IDE connector

7 SPK1 Speaker header

8 SATA1/2 Serial ATA connectors (Optional)

9 PANEL1 Front Panel Sw itch/LED header

10 CLR_CMOS1 Clear CMOS jumper

11 SYS_FAN1 System Fan connector

12 FDD1 Floppy Disk Drive connector (Optional)

13 F_USB1/2 Front Panel USB headers

14 CNR1 CNR slot (Optional)

15 F_AUDIO1 Front Panel Audio header

16 PCI1-2 32-bit PCI slots

17 CD_IN1 Analog Audio Input header

18 IR1 Infrared header
