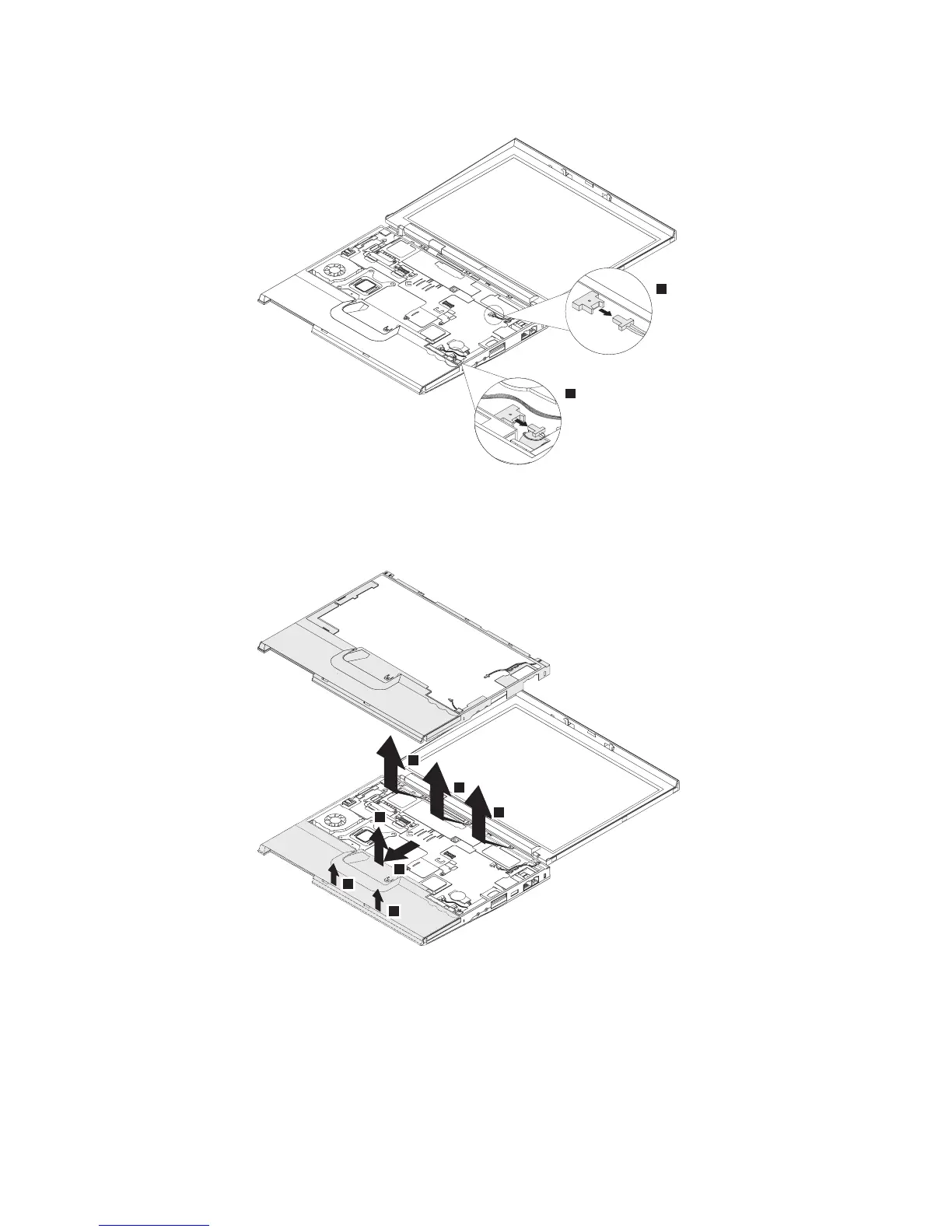

Detach cover switch cable(suspend cable), shown as 1,
and microphone cable, shown as 2.
1
1
2
Gently push the upper case backward, as shown in step
1. And lift it up slightly, as shown in step 2. Then
release the latches, as shown in step 3 and step 4,
carefully to remove the upper case.
2
1
4
3
3
4
4
(continued)
Removing and replacing a FRU
86 MT 2369/2370/2371/2372/2382/2386
