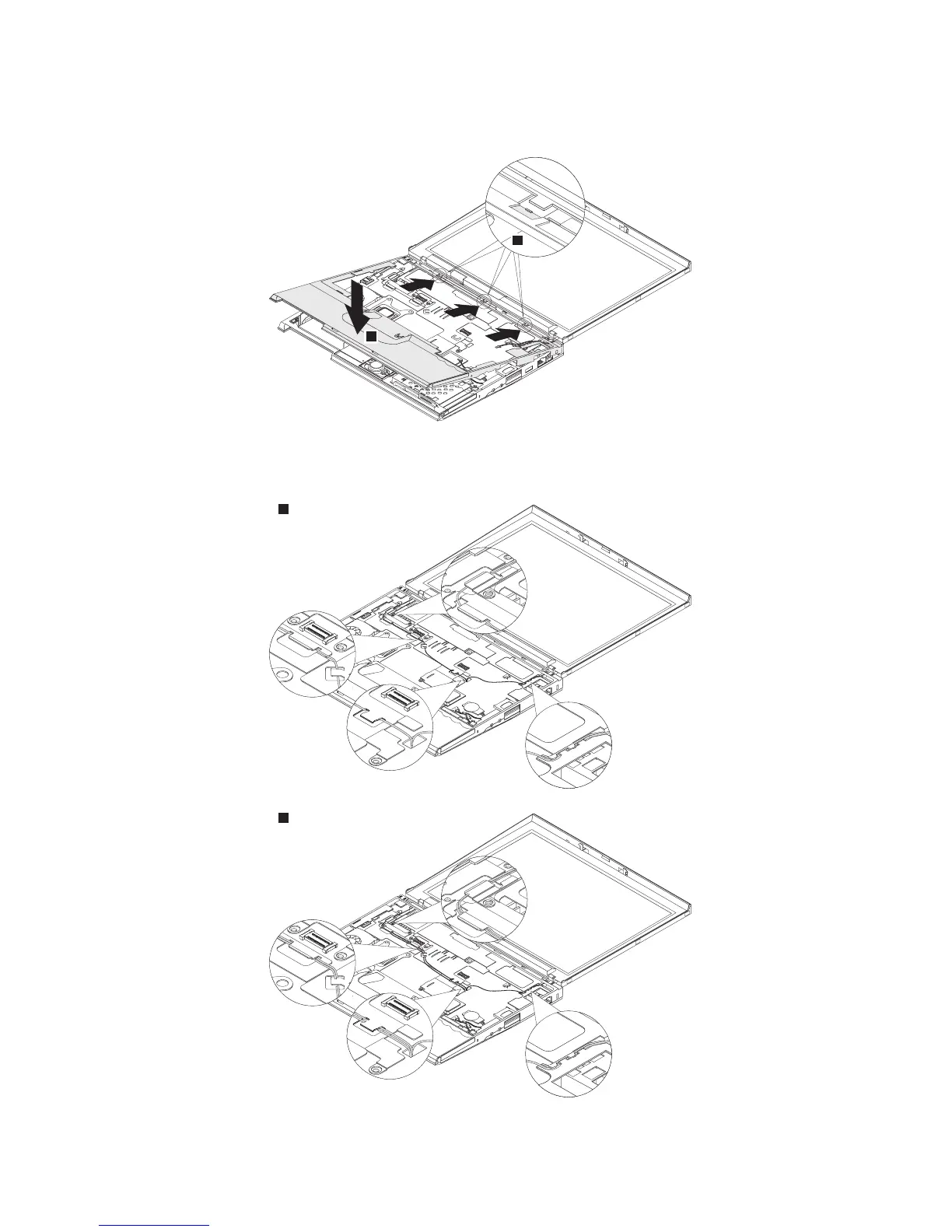

When
installing:
Make
sure
that
the
upper
case
edges,
shown
in
the
step
1
,
are
under
the
frame.
1
2
Note:
After
installing
upper
case,
arrange
antenna
as
1
.
If
BMDC
II
is
used,
arrange
antenna
as
2
.
1
2
Removing
and
replacing
a
FRU
ThinkPad
X40
87
90
92
Table of Contents
Default Chapter
3
Table of Contents
3
About this Manual
5
Introduction
7
Important Service Information
7
Strategy for Replacing Frus
7
Strategy for Replacing a Hard Disk Drive
8
How to Use Error Messages
8
Product Definition
8
Strategy for Replacing Frus for CTO, CMV, and GAV
8
FRU Identification for CTO, CMV, and GAV Products
9
Important Information about Replacing Rohs Compliant Frus
11
Diskette Compatibility Matrix
12
Safety Notices: Multilingual Translations
12
General Descriptions
24
Safety Information
24
General Safety
24
Electrical Safety
25
Safety Inspection Guide
27
Handling Devices that Are Sensitive to Electrostatic Discharge
28
Grounding Requirements
29
Laser Compliance Statement
30
General Descriptions
33
Read this First
33
What to Do First
33
Recovering the Hard Disk to Original Contents
35
Related Service Information
35
Restoring the Preloaded System
35
Service Web Site
35
Product Recovery Program
36
Using the Recovery CD
37
Passwords
41
How to Remove the Hard Disk Password
42
Power Management
43
Standby Mode
44
Hibernation Mode
45
Checkout Guide
46
Testing the Computer
46
Detecting System Information with PC-Doctor
49
Power System Checkout
50
Checking Operational Charging
51
Checking the Battery Pack
51
Checking the Backup Battery
52
Thinkpad X40
53
Product Overview
55
Specifications
55
Status Indicators for X40
57
FRU Tests
59
Fn Key Combinations
61
Numeric Error Codes
63
Symptom-To-FRU Index
63
Error Messages
70
Beep Symptoms
72
No-Beep Symptoms
72
LCD-Related Symptoms
73
Intermittent Problems
74
Undetermined Problems
74
FRU Replacement Notices
75
Screw Notices
75
Retaining Serial Numbers
76
Restoring the Serial Number of the System Unit
76
Retaining the UUID
77
Reading or Writing the ECA Information
77
Removing and Replacing a FRU
79
1010 Battery Pack
80
1020 Hard Disk Drive
81
1030 DIMM Cover
82
1040 Mini PCI Adapter, DIMM, MDC-2, and BMDC-2
83
1050 Keyboard
86
1060 Upper Case
89
1070 Backup Battery
92
1080 LCD Module
93
1090 Hard Disk Housing Assembly
96
1100 Top Shielding
97
1110 Lower Case
98
1120 Fansink
102
2010 LCD Bezel
103
2020 Lcd
106
2030 Inverter Card
107
2040 Antenna L and Antenna R
109
2050 Hinge L and Hinge R
113
2060 Bluetooth Antenna Cable
115
Locations
116
Front View for X40 Series
116
Rear View for X40 Series
117
Bottom View for X40 Series
118
Front View for X4 Ultrabase Dock
119
Rear View for X4 Ultrabase Dock
120
Parts List
121
Overall
121
LCD Frus
131
12.1-In. XGA TFT
131
Keyboard
133
Recovery Cds
134
For Windows XP Professional
134
For Windows XP Home Edition
136
Miscellaneous Parts
137
Common Parts List
138
Tools
138
Power Cords (System)
138
Telephone Cable
139
Notices
140
Trademarks
140
