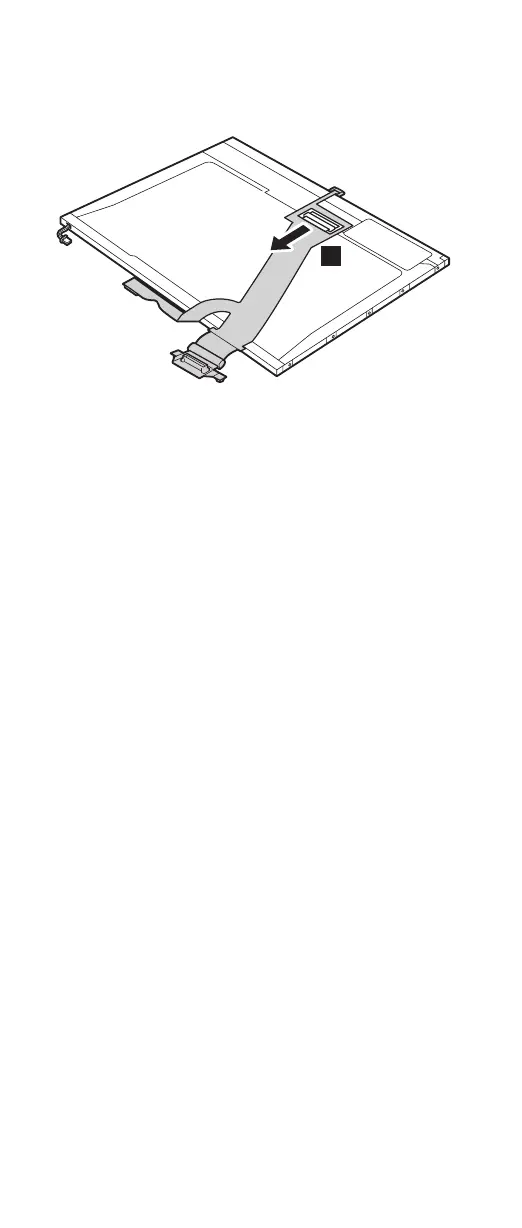

Turn over the LCD panel, and detach the connector 8 in

the direction of the arrow.

When installing: Make sure that the FPC connector is

firmly attached to the LCD panel.

(continued)

Removing and replacing a FRU

172 MT 1871/1872/1875/1876
