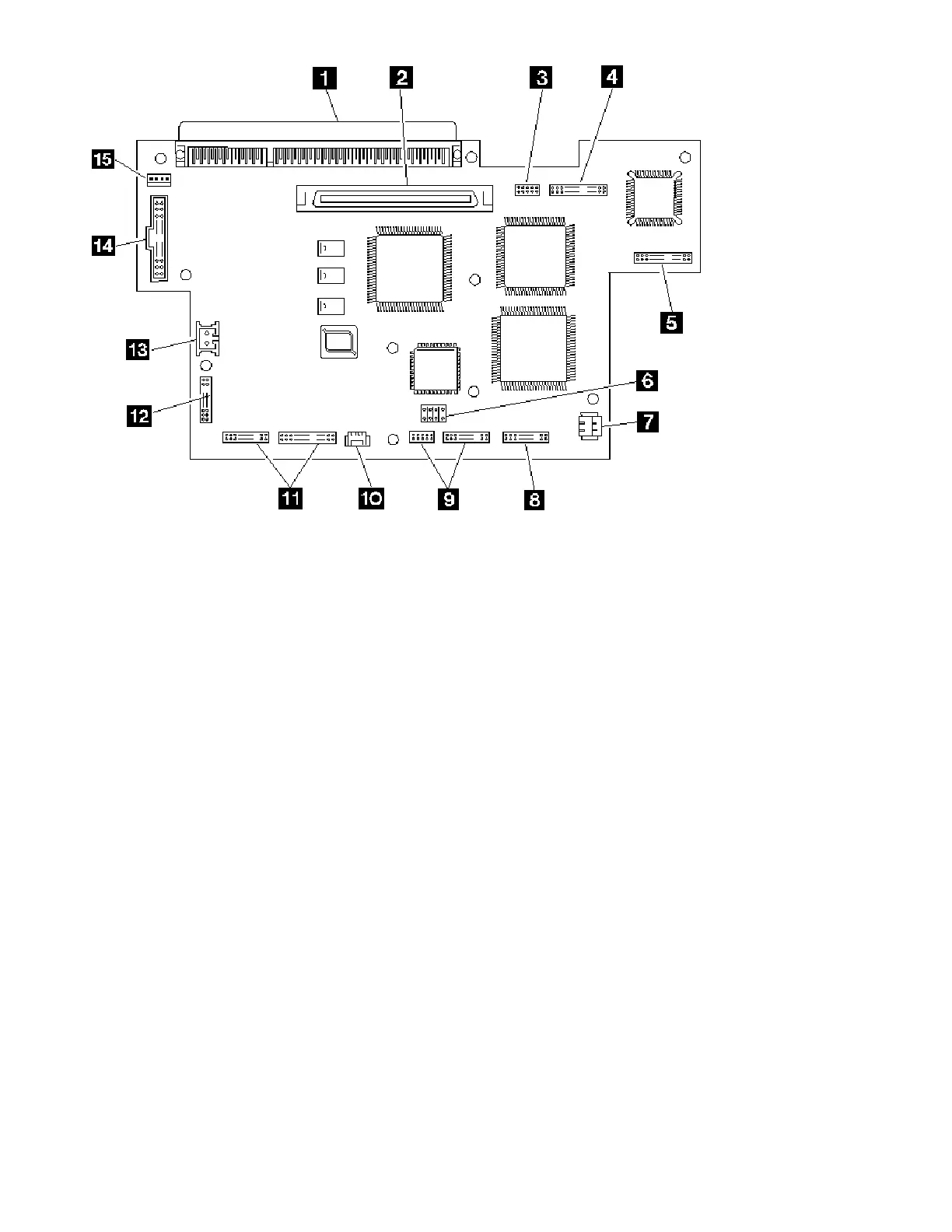

7.6 System Board
1
System Expansion Connector (150-pin)
2
Display Control Card
3
Serial Connector
4
I/O Panel (Parallel and External Input Device)
5
Indicator Card
6
Password-Override Connector
7
Backup Battery
8
Communication Interface (Modem/Serial)
9
Diskette Drive
10
Thermal Sensor
11
Hard Disk Drive
12
Interconnection, Trackball and Keyboard Control Card
13
Dew Point Sensor
14
Voltage Converter
15
Voltage Converter
IBM PS/2 Model CL57 SX HMR
System Board
_ Copyright IBM Corp. 1991
