4405ch02 Architecture and technical overview.fm Draft Document for Review May 28, 2009 1:59 pm
54 IBM Power 570 Technical Overview and Introduction
2.10.5 7311 I/O drawer and SPCN cabling
SPCN
4
is used to control and monitor the status of power and cooling within the I/O drawer.
SPCN is a loop: Cabling starts from SPCN port 0 on the 570 to SPCN port 0 on the first I/O
drawer. The loop is closed, connecting the SPCN port 1 of the I/O drawer back to port 1 of the
570 system. If you have more than one I/O drawer, you continue the loop, connecting the next
drawer (or drawers) with the same rule.

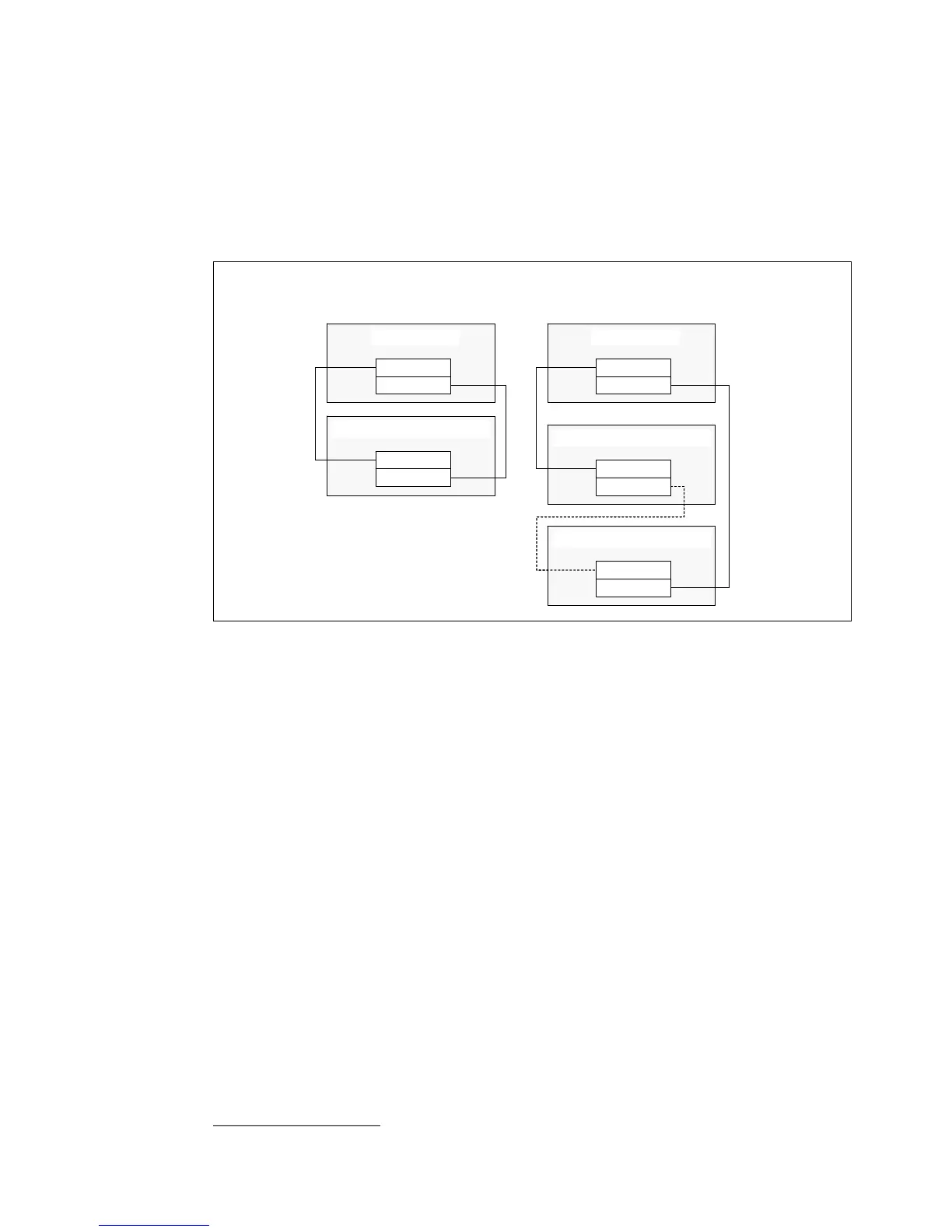

Figure 2-19 SPCN cabling examples
There are different SPCN cables to satisfy different length requirements:
򐂰 SPCN cable drawer-to-drawer, 2 m (FC 6001)
򐂰 SPCN cable drawer-to-drawer, 3 m (FC 6006)
򐂰 SPCN cable rack-to-rack, 6 m (FC 6008)
򐂰 SPCN cable rack-to-rack, 15 m (FC 6007)
򐂰 SPCN cable rack-to-rack, 30 m (FC 6029)
2.10.6 7314 Model G30 I/O drawer
The 7314-G30 expansion unit is a rack-mountable, I/O expansion drawer that is designed to
be attached to the system unit using the InfiniBand® bus and InfiniBand cables. The
7314-G30 can accommodate 6 blind swap adapter cassettes. Cassettes can be installed and
removed without removing the drawer from the rack. The Figure 2-20 on page 55 shows the
back view of the expansion unit.
4
System Power Control Network
SPCN port 0
SPCN port 1
Primary drawer
SPCN port 0
SPCN port 1
I/O drawer or secondary drawer
SPCN port 0
SPCN port 1
Primary drawer
SPCN port 0
SPCN port 1
I/O drawer or secondary drawer
SPCN port 0
SPCN port 1
I/O drawer or secondary drawer
SPCN cabling examples
SPCN port 0
SPCN port 1
Primary drawer
SPCN port 0
SPCN port 1
I/O drawer or secondary drawer
SPCN port 0
SPCN port 1
Primary drawer
SPCN port 0
SPCN port 1
I/O drawer or secondary drawer
SPCN port 0
SPCN port 1
I/O drawer or secondary drawer
SPCN cabling examples
