4405ch02 Architecture and technical overview.fm Draft Document for Review May 28, 2009 1:59 pm
66 IBM Power 570 Technical Overview and Introduction

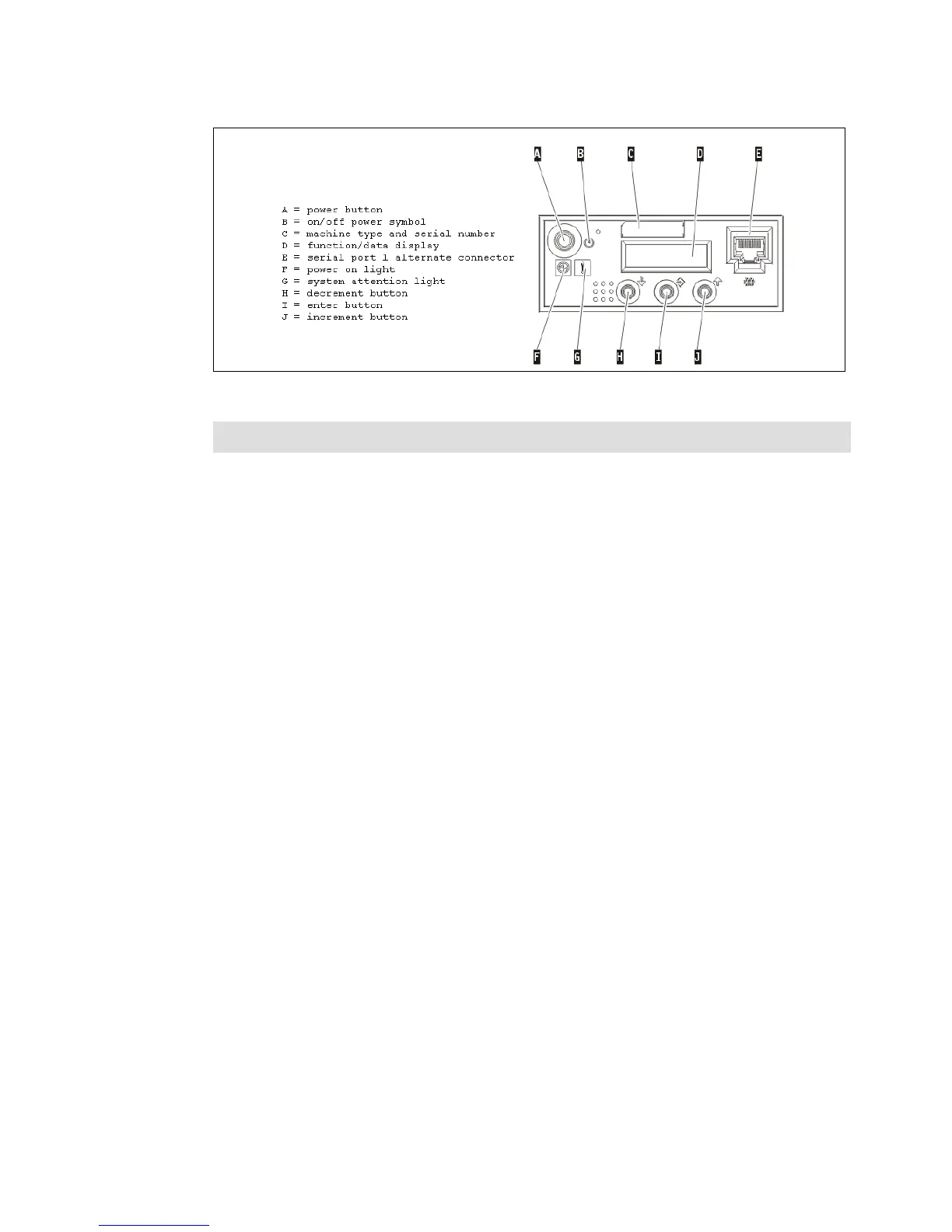

Figure 2-26 Operator control panel physical details and button
Primary control panel functions
The primary control panel functions are defined as functions 01 to 20, including options to
view and manipulate IPL modes, server operating modes, IPL speed, and IPL type.
The following list describes the primary functions:
򐂰 Function 01: Display the selected IPL type, system operating mode, and IPL speed
򐂰 Function 02: Select the IPL type, IPL speed override, and system operating mode
򐂰 Function 03: Start IPL
򐂰 Function 04: Lamp Test
򐂰 Function 05: Reserved
򐂰 Function 06: Reserved
򐂰 Function 07: SPCN functions
򐂰 Function 08: Fast Power Off
򐂰 Functions 09 to 10: Reserved
򐂰 Functions 11 to 19: System Reference Code
򐂰 Function 20: System type, model, feature code, and IPL type
All the functions mentioned are accessible using the Advanced System Management
Interface (ASMI), HMC, or the control panel.
Extended control panel functions
The extended control panel functions consist of two major groups:
򐂰 Functions 21 through 49, which are available when you select Manual mode from Function
02.
򐂰 Support service representative Functions 50 through 99, which are available when you
select Manual mode from Function 02, then select and enter the client service switch 1
(Function 25), followed by service switch 2 (Function 26).
Note: For servers managed by the HMC, use it to perform control panel functions.
