Table 28. Index number and the corresponding description for the front view of the tape drive
Index number Description
1 Ready (green)
2 Active (green)
3 Cleaning (amber)
4 Fault (amber)
5 Eject button
The status lights and their ISO symbols are on the device as follows:
Ready
(green)
Activity
(green)
Cleaning
(amber)
Fault
(amber)
The combinations of the lights and their definitions are shown in the following table.
Table 29. Definition of status light combinations
Operation
Ready
Activity
Cleaning
Fault
Power-on self-test
1
Flashing Off Off Off
Power On LED Test On for 2.0 seconds On for 2.0 seconds On for 2.0 seconds On for 2.0 seconds
No tape loaded Off Off On
2
/Off Off

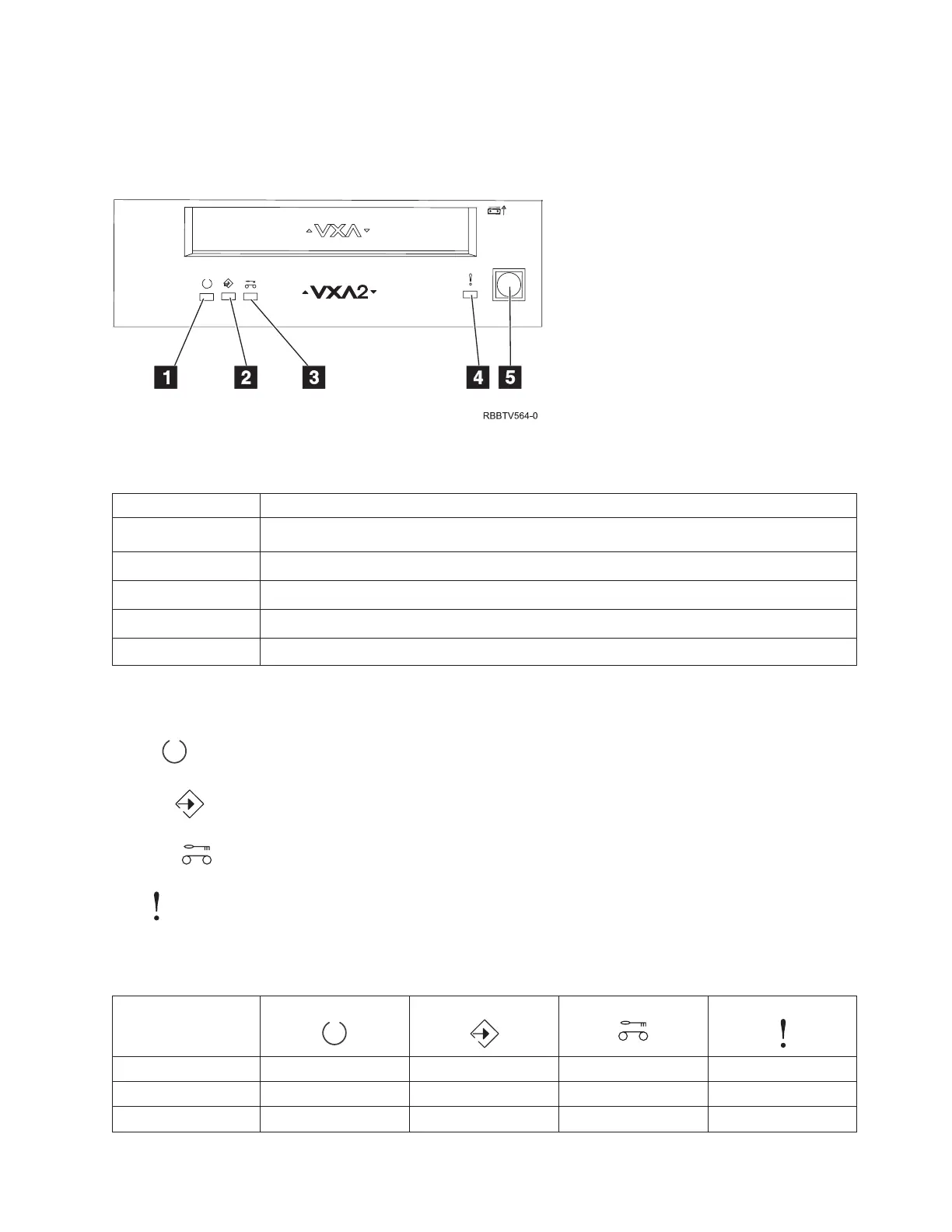

Figure 4. Front view of tape drive
