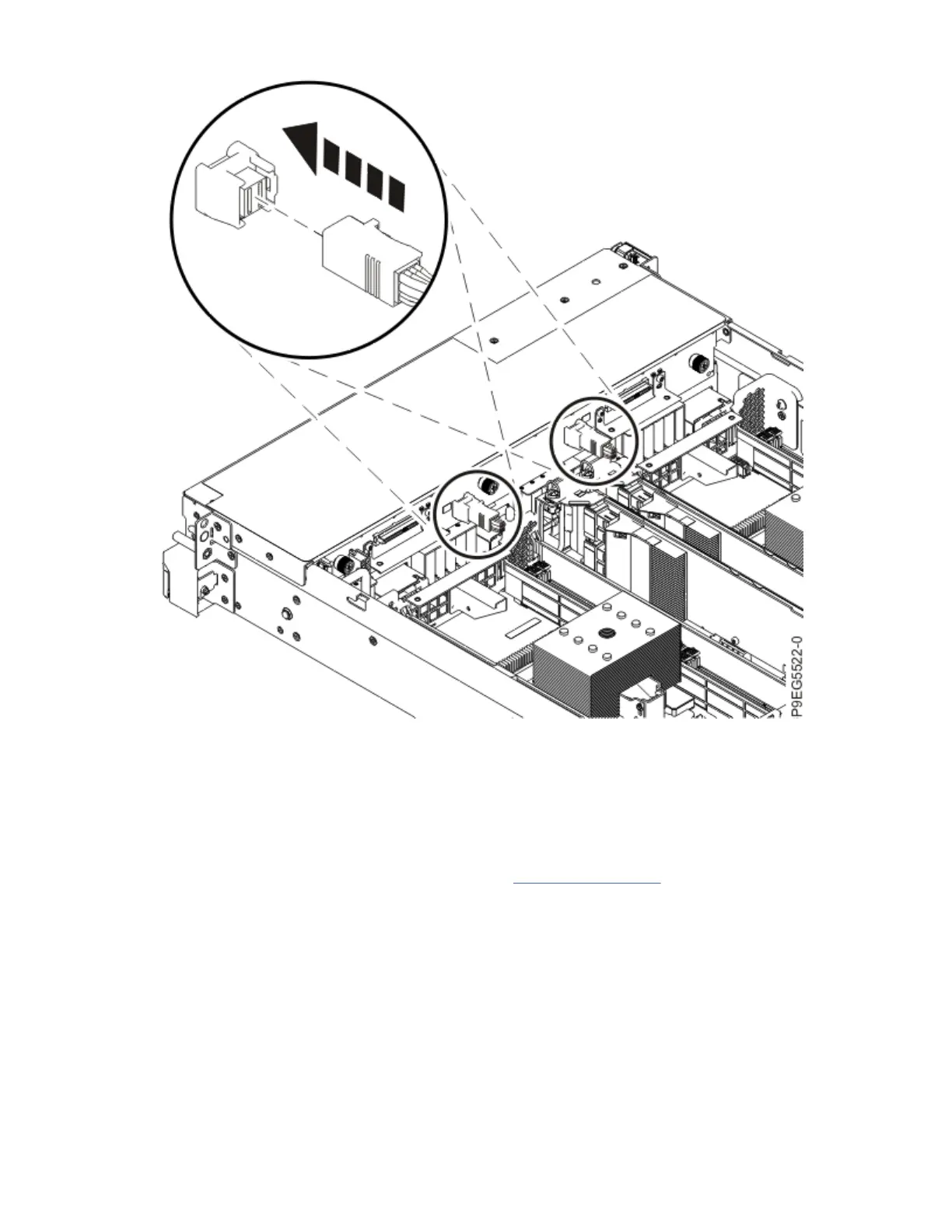

Figure 26. Reconnecting the front SAS cables
Notes:
If you have one storage controller in slot P1-C49 (base-storage feature) and a ller in slot P1-
C50
One SAS cable connects the disk drive backplane connector J1 to the P1 connector on the
storage controller. Another SAS cable connects the disk drive backplane connector J2 to the P2
connector on the same storage controller. See Figure 27 on page 28.
Drive backplanes for the 5105-22E, 9008-22L, 9009-22A, 9009-22G, or 9223-22H
27
