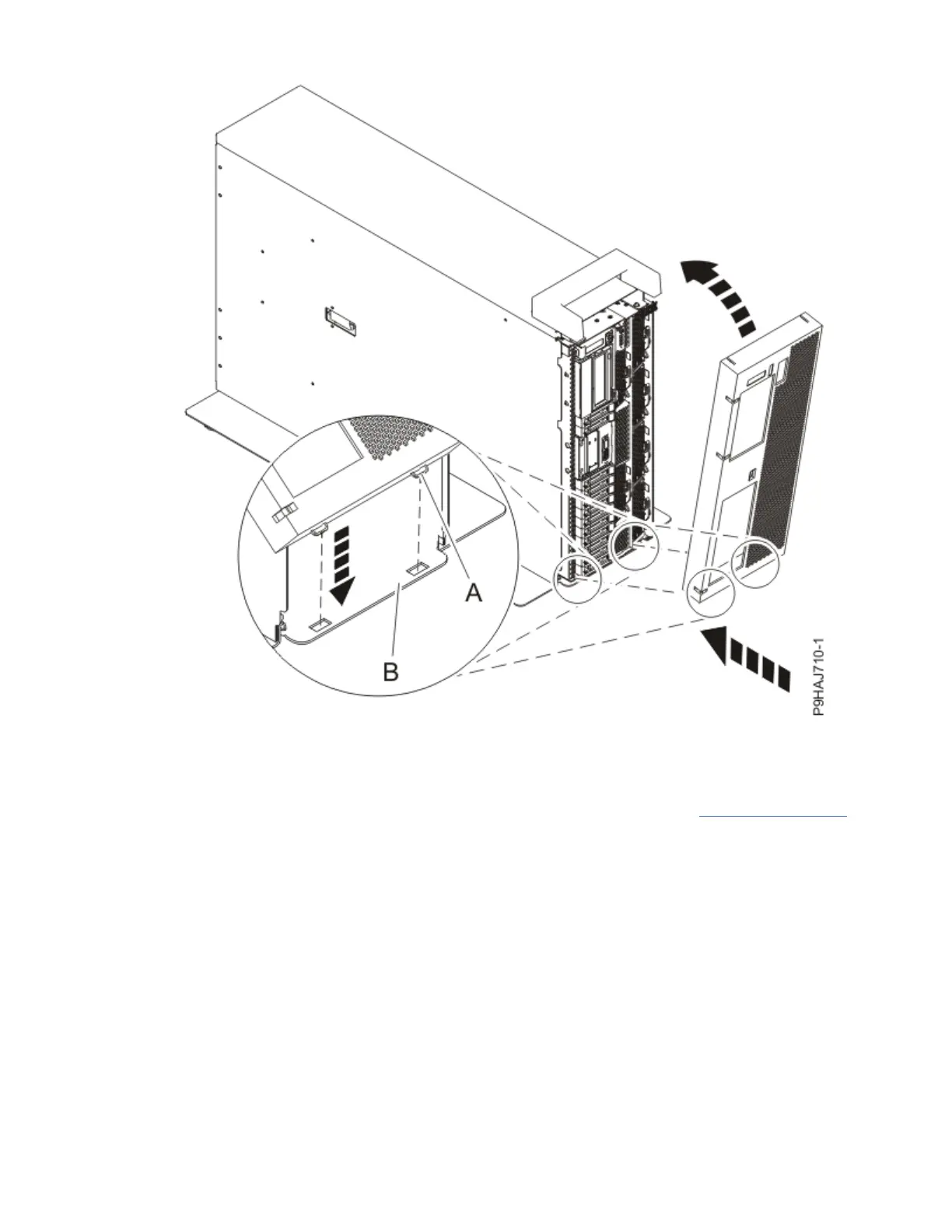

Figure 89. Installing the front cover and door
c) Rotate the cover up and towards the system until the release latch is seated into its respective
slot.
d) Twist the cover latch to the right (clockwise) to lock the cover as shown in Figure 90 on page 94.
Vertical is locked; horizontal is unlocked.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H
