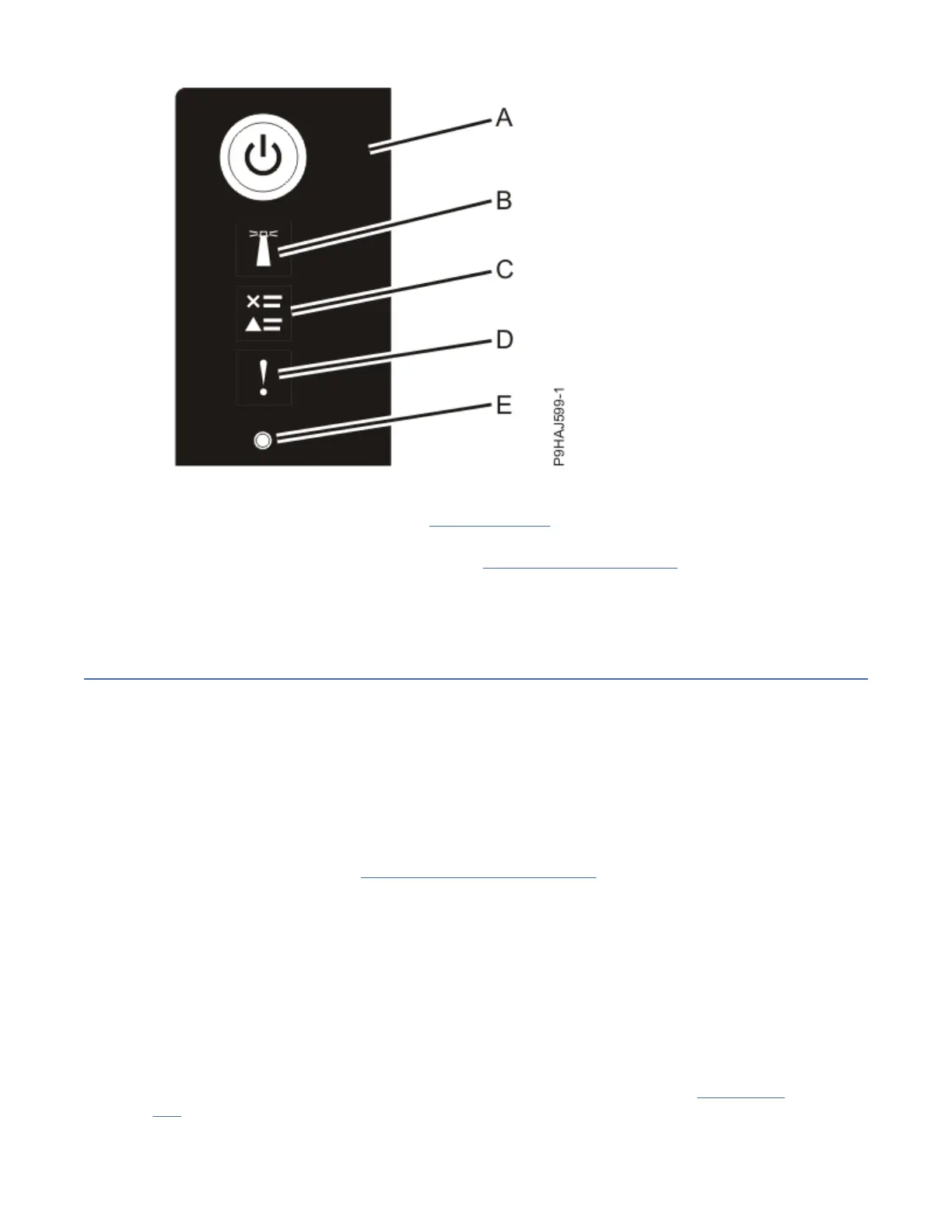

Figure 35. Control panel LEDs
9. Start the system. For instructions, see Starting a system (www.ibm.com/support/knowledgecenter/
POWER9/p9haj/crustartsys.htm).
10. Turn off the identify LED. For instructions, see Deactivating an identify LED (www.ibm.com/support/
knowledgecenter/POWER9/p9haj/p9haj_turn_off_identify_led.htm).
Removing and replacing the control panel display in the 9009-41A,
9009-42A, or 9223-42H
Find information about removing and replacing the control panel display in the IBM Power System S914
(9009-41A), IBM Power System S924 (9009-42A), or IBM Power System H924 (9223-42H) server.
About this task
Note: Removing or replacing this feature is a customer task. You can complete this task yourself, or
contact a service provider to complete the task for you. You might be charged a fee by the service
provider for this service.
If your system is managed by the Hardware Management Console (HMC), use the HMC to repair a part in
the system. For instructions, see Repairing a part by using the HMC (www.ibm.com/support/
knowledgecenter/POWER9/p9haj/p9haj_hmc_repair.htm).
If you do not have an HMC, use the following procedures to remove and replace the control panel display.
Preparing the 9009-41A, 9009-42A, or 9223-42H system to remove and replace the
control panel display
To prepare the system to remove and replace a control panel display, complete the steps in this
procedure.
Procedure
1. Identify the part and the system that you are working on. For instructions, see Identifying a
part (www.ibm.com/support/knowledgecenter/POWER9/p9haj/sal.htm).
Control panel and control panel display for the 9009-41A, 9009-42A, or 9223-42H
37
