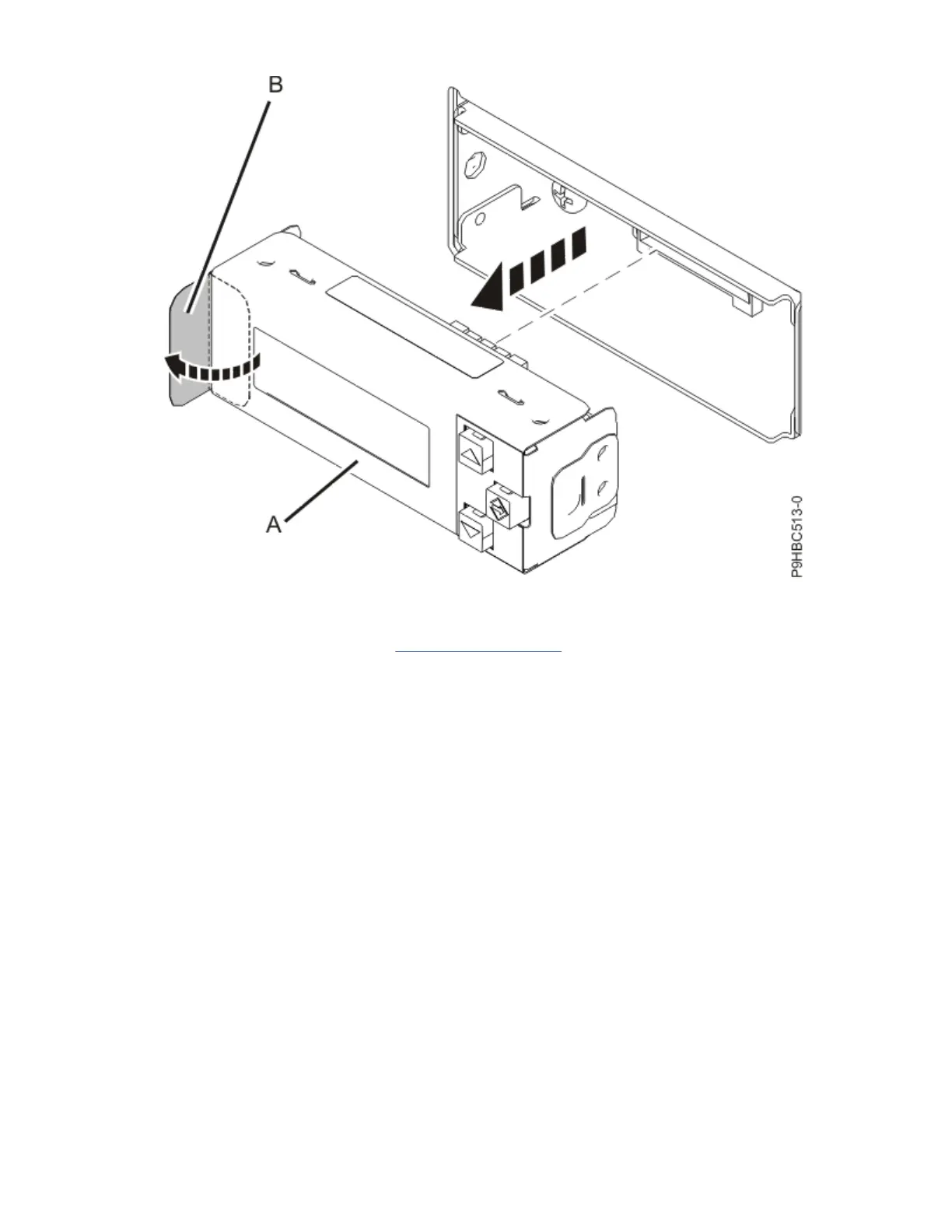

Figure 110. Removing the control panel display
6. For the rack-mounted system, remove the two screws (A) that secure the control panel display
holder to the chassis as shown in Figure 111 on page 116.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H
115
