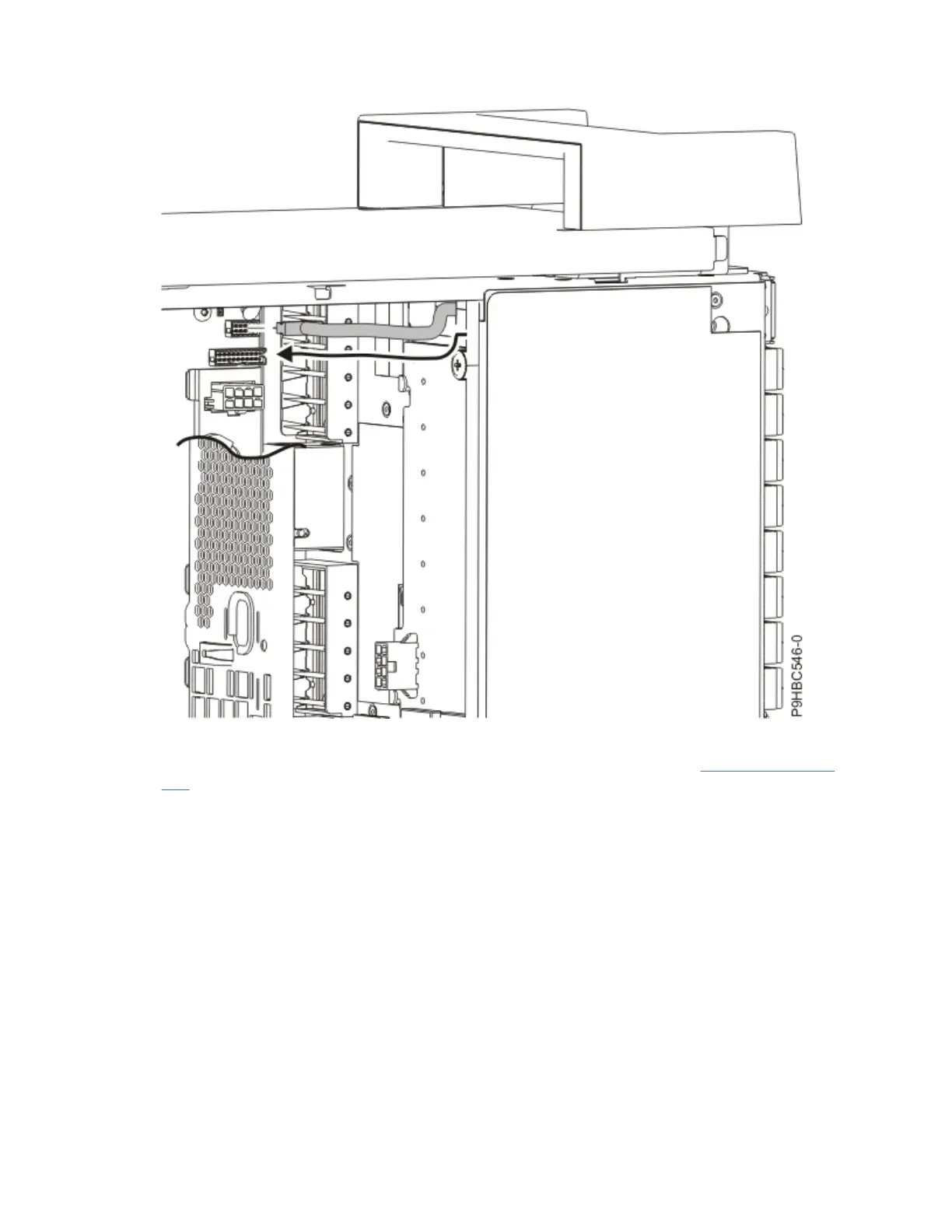

Figure 122. Control panel display cable path for a stand-alone system
6. Connect the control panel display cable to the system backplane as shown in Figure 123 on page
128.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H
127
