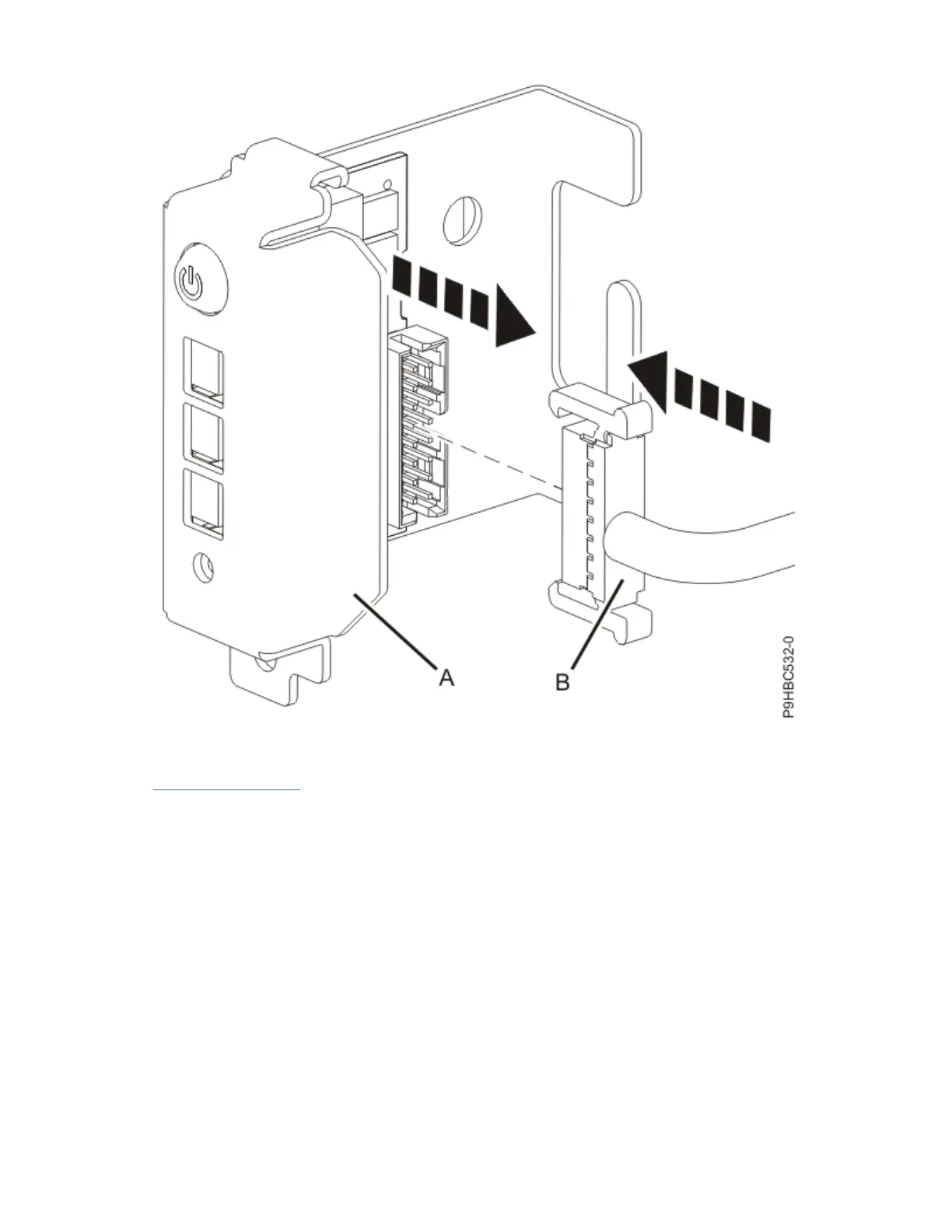

Figure 22. Connecting the control panel and cable for a stand-alone system
3. For a rack-mounted system, attach the control panel (A) to the bracket with screw (B) as shown in
Figure 23 on page 25.
Ensure that the control panel pins align with the bracket holes.
24
Power Systems: Power Systems: Control panel
