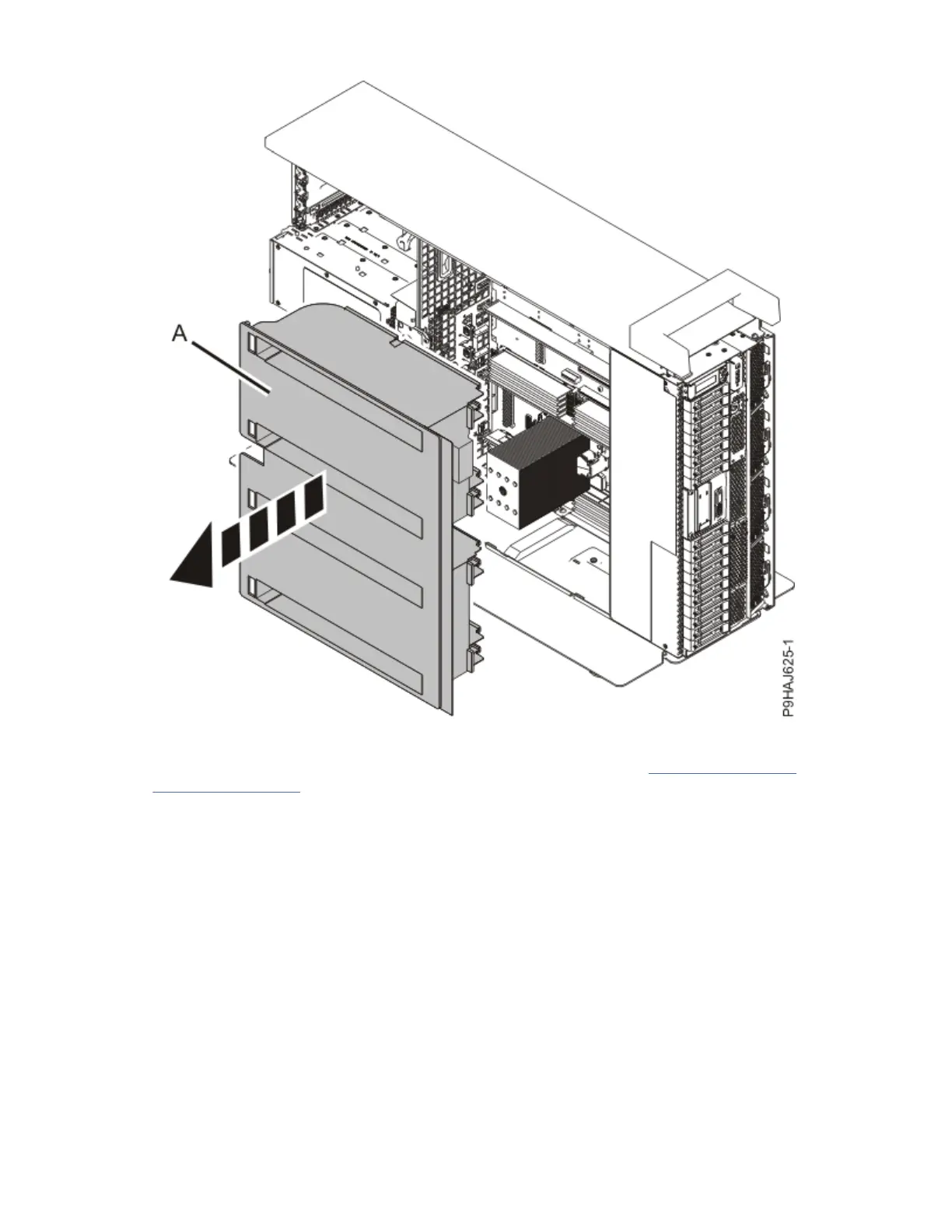

Figure 60. Removing the air baffle from a stand-alone system
3. Unplug the control panel cable from the system backplane as shown in Figure 61 on page 65 or
Figure 62 on page 66.
As you face the chassis, the connector is in the left front corner. You can pull the cable from the
system backplane by using the cable cover near the plug.
64
Power Systems: Power Systems: Control panel
