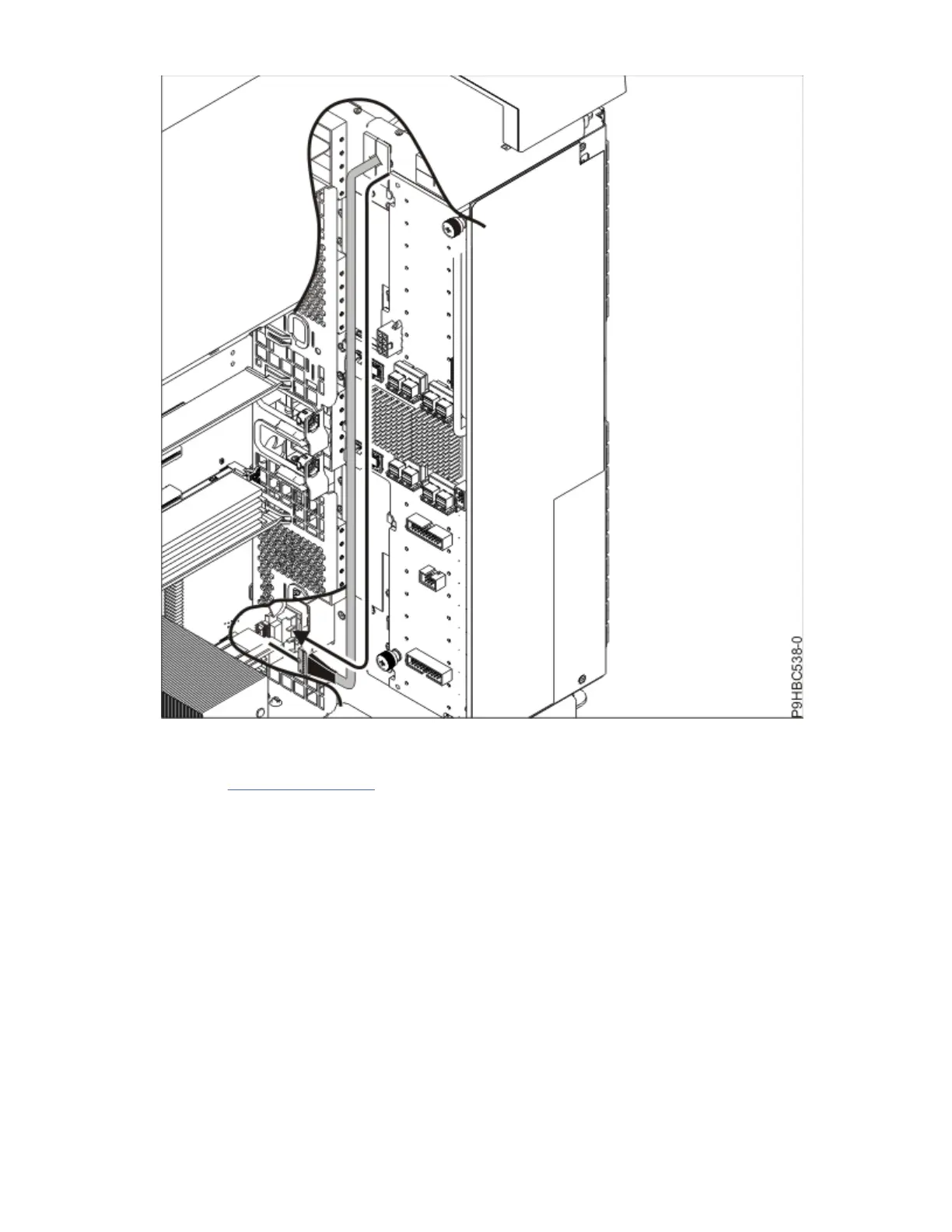

Figure 76. Control panel cable path for a stand-alone system
5. For the rack-mounted system, attach the bracket (B) to the side of the system with two screws (A) as
shown in Figure 77 on page 81.
80
Power Systems: Power Systems: Control panel
