The following table provides location codes for parts that make up the server.
Table 41. Bulk power assembly (BPA) locations, and failing components
Failing item name Symbolic FRU
name
CCIN Failing item removal and
replacement procedures
OCA Ux-E1 2C43
OCA UPIC connector Ux-E1-T1
OCA UPIC connector Ux-E1-T2
OCA Ux-E2 2C43
OCA UPIC connector Ux-E2-T1
OCA UPIC connector Ux-E2-T2
Fans
Fan Ux-E1-A1 See Fan.
Fan Ux-E1-A2
Fan Ux-E2-A1
Fan Ux-E2-A2
Backplane
System backplane Ux-P1 50A2
IOA Ux-P1-C1
IOA Ux-P1-C2
IOA Ux-P1-C3
IOA Ux-P1-C4
IOA Ux-P1-C5
IOA Ux-P1-C6
IOA Ux-P1-C7
IOA Ux-P1-C8
IOA Ux-P1-C9

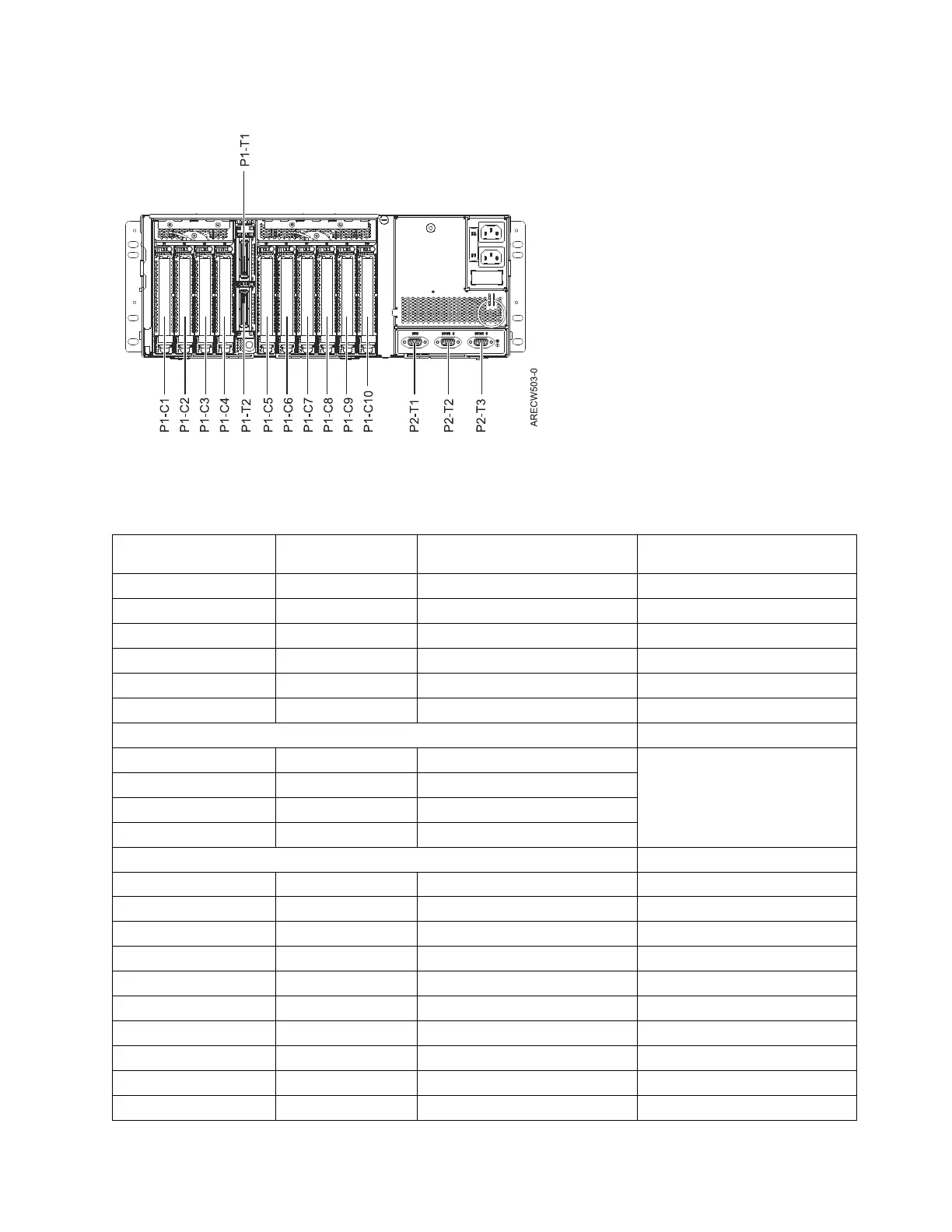

Figure 56. 5877 rear view
Finding parts, locations, and addresses 147
