The following table provides location codes for parts that make up the server.
Table 44. Bulk power assembly (BPA) locations, and failing components
Failing item name Symbolic FRU name CCIN
DCA Un-E1 2C44
DCA UPIC connector Un-E1-T1
DCA UPIC connector Un-E1-T2
DCA Un-E2 2C44
DCA UPIC connector Un-E2-T1
DCA UPIC connector Un-E2-T2
Fans
Fan Un-E1-A1
Fan Un-E1-A2
Fan Un-E1-A3
Fan Un-E2-A1
Fan Un-E2-A2
Fan Un-E2-A3
Backplane
v Un-P1-C1
v Un-P2-C1
Planar Un-Px 50A2
IOA slot Un-Px-C1
IOA slot Un-Px-C2
IOA slot Un-Px-C3
IOA slot Un-Px-C4
IOA slot Un-Px-C5
IOA slot Un-Px-C6
IOA slot Un-Px-C7
IOA slot Un-Px-C8
IOA slot Un-Px-C9

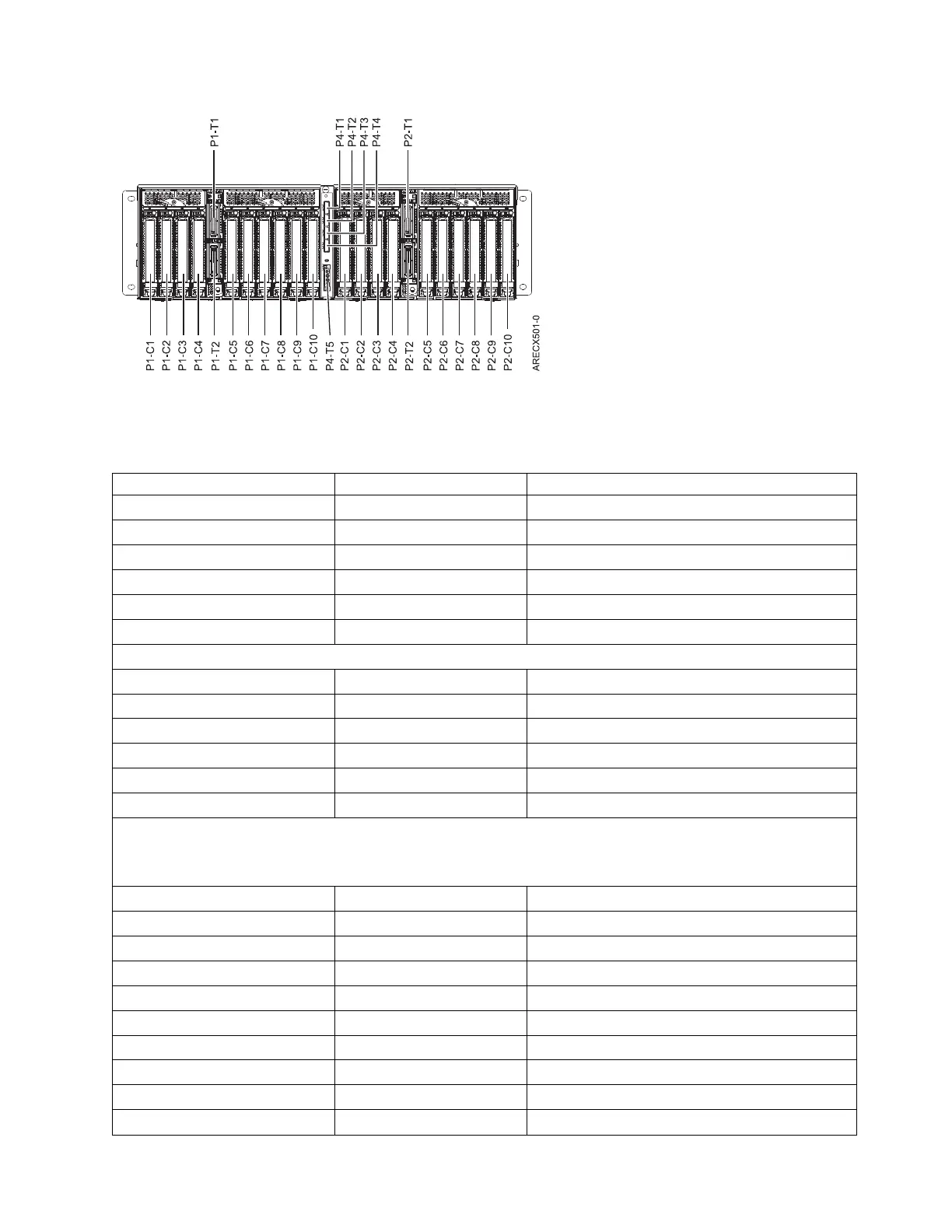

Figure 58. Rear view
Finding parts, locations, and addresses 153
