Table 146. Final assembly (assembly 1) (continued)
Index number CCIN Part number Units Description
2 2665528 6 Screw
3 42V2119 6 J-bracket assembly, side cover
4 2665528 12 Screw
5 45D4167 1 Acoustic rear cover
6 45D3405 1 Cover assembly (right)
7 2665528 6 Screw
8 2665525 4 Screw
9 41V2376 2 Latch bracket
10 45D7950 1 Acoustic front cover

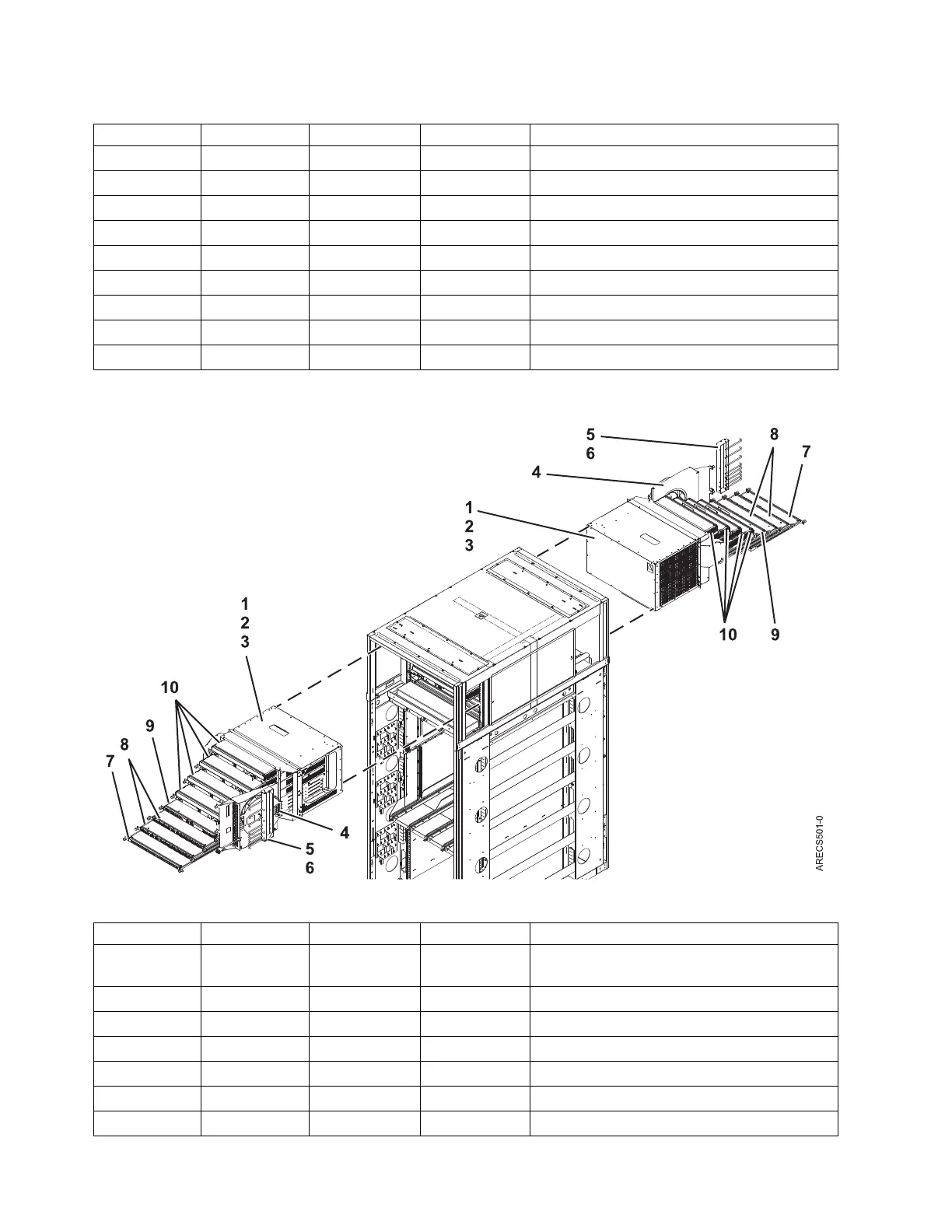

Table 147. Final assembly (assembly 2)
Index number CCIN Part number Units Description
1 45D7779 2 Bulk power enclosure (BPE) assembly (new
installation only)
1 45D2463 2 BPE assembly (model upgrades only)
2 77G0599 10 Screw
3 74F1823 10 Nut clip
4 41V2374 As required Bulk power fan (BPF) assembly
4 41V2453 As required BPF filler plate, front only
5 15R9306 2 Cable bracket assembly
264 Finding parts, locations, and addresses
