15. Complete a mode 1 connection of two enclosures (A and B) by using YO cables (C and D) to a single
SAS adapter (E) as shown in Figure 24 on page 27.
Note: The single SAS adapter (E) has access to all 48 drive bays.

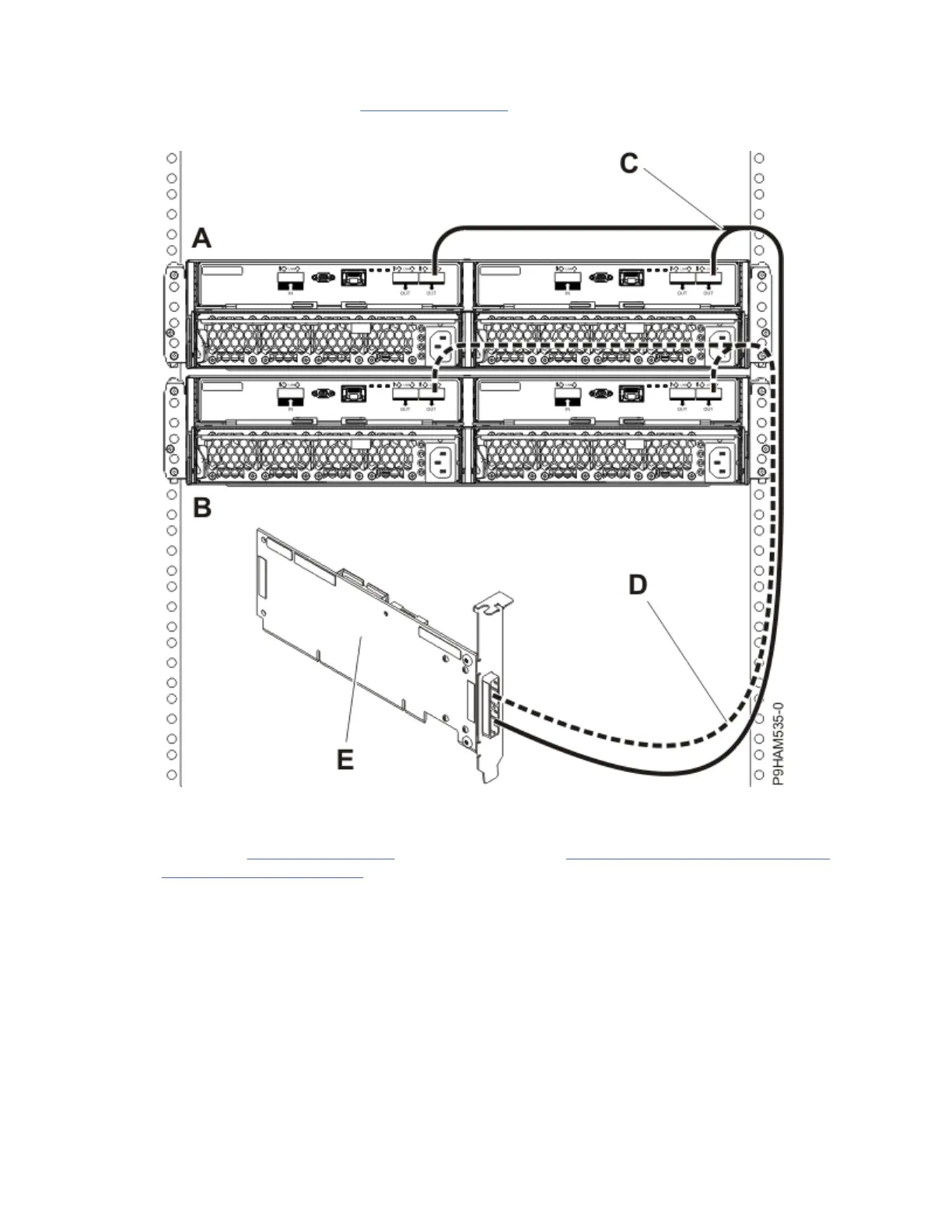

Figure 24. Mode 1 connection of two enclosures by using YO cables to a single SAS adapter
16. Complete a mode 1 connection of one enclosure (A) by using YO cables (B) to a SAS adapter pair (C)
as shown in Figure 25 on page 28, and then continue with “Connecting cables, power cords, and
installing covers” on page 33.
Note: The single SAS adapter (E) has access to all 48 drive bays.
Notes:
• Each adapter in the SAS adapter pair (C) has access to the other adapter and to all 24 drive bays.
• If 6 Gb SAS adapters are being used, they must be cabled by using 6 Gb SAS cables.
• For SAS adapter pairs, you can attach the cables to any adapter port when you use the same port in
both adapters.
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure
27
