IBM Power Systems 8202-E4B Site And Hardware Planning

Power cord routing and retention
Proper power cord routing and retention ensures that your system remains connected to a power supply.
The primary purpose of power cord retention is to prevent unexpected power loss to your system that
could potentially cause system operations to stop functioning.
Different types of power cord retention are available. Some of the most commonly used types of retention
include:
v Cable management arms
v Rings
Rack(BackView)
CableLanes
Interior
Exterior
Power
I/OBus
Disk/Storage
Customer
application
P8HAD515-0

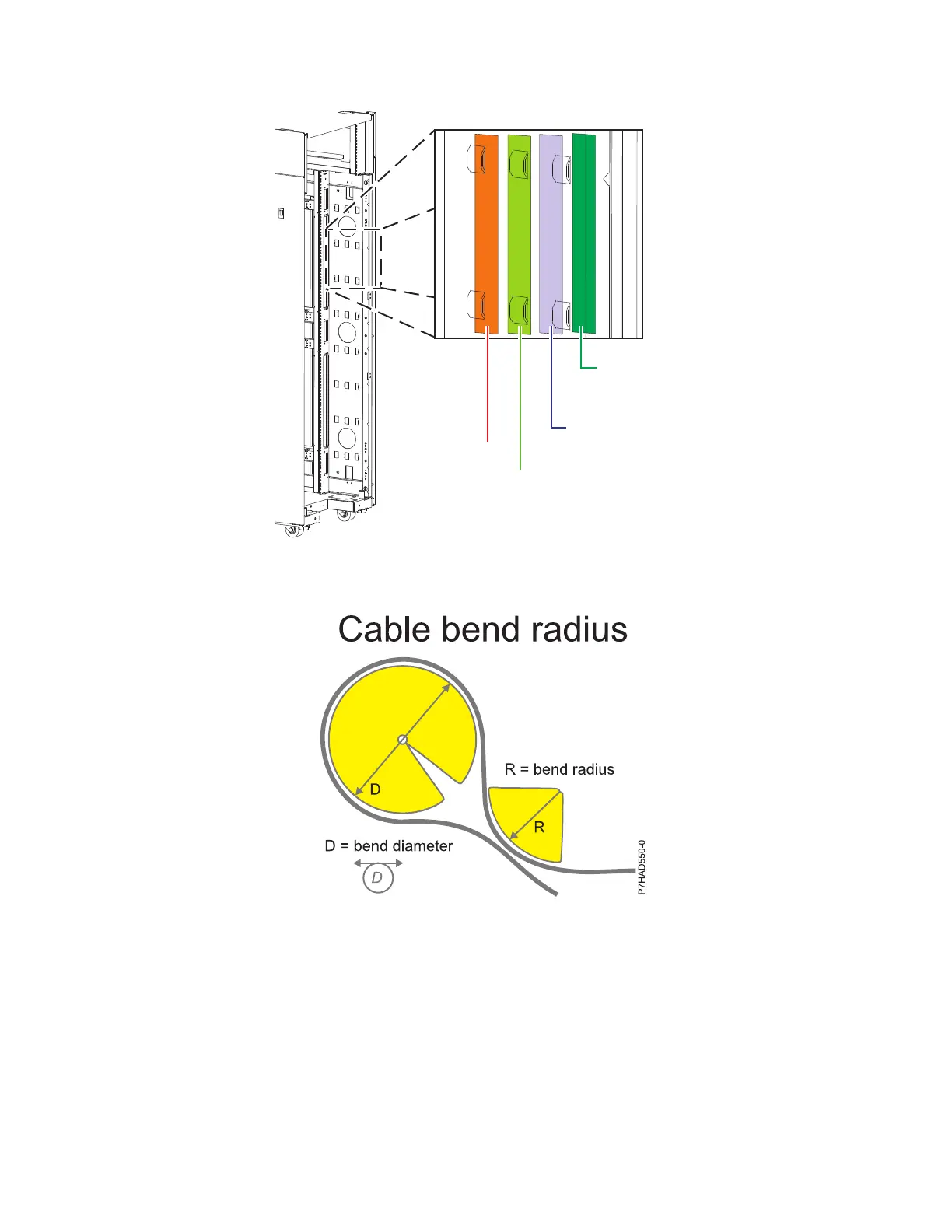

Figure 54. Cable management bridge lances
Figure 55. Cable bend radius
Site and hardware planning 121
