IBM Power Systems 8202-E4B Site And Hardware Planning

Model 1164-95X rear door heat exchanger:
Learn about the specifications of the 1164-95X rear door heat exchanger (feature code EC05).
Model 1164-95X rear door heat exchanger specifications
Table 88. Dimensions for the 1164-95X rear door heat exchanger
Width
1
Depth Height Weight (empty) Weight (filled)
600 mm (23.6 in.) 129 mm (5.0 in.) 1950 mm (76.8 in.) 39 kg (85.0 lb) 48 kg (105.0 lb)
1. The width is the inside width of the machine when installed in the U space of the rack. The width of the front
bezel is 482 mm (19.0 in.).
Water specifications
v Pressure
– Normal operation: <137.93 kPa (20 psi)
– Maximum: 689.66 kPa (100 psi)
v Volume
– Approximately 9 liters (2.4 gallons)
v Temperature
– Water temperature must be above the dew point in the data center
– 18°C ± 1°C (64.4°F ± 1.8°F) for ASHRAE Class 1 Environment
– 22°C ± 1°C (71.6°F ± 1.8°F) for ASHRAE Class 2 Environment
v Required water flow rate (as measured from the supply entrance to the heat exchanger)
RightSidePanel
AssembledView
P8HAD508-0

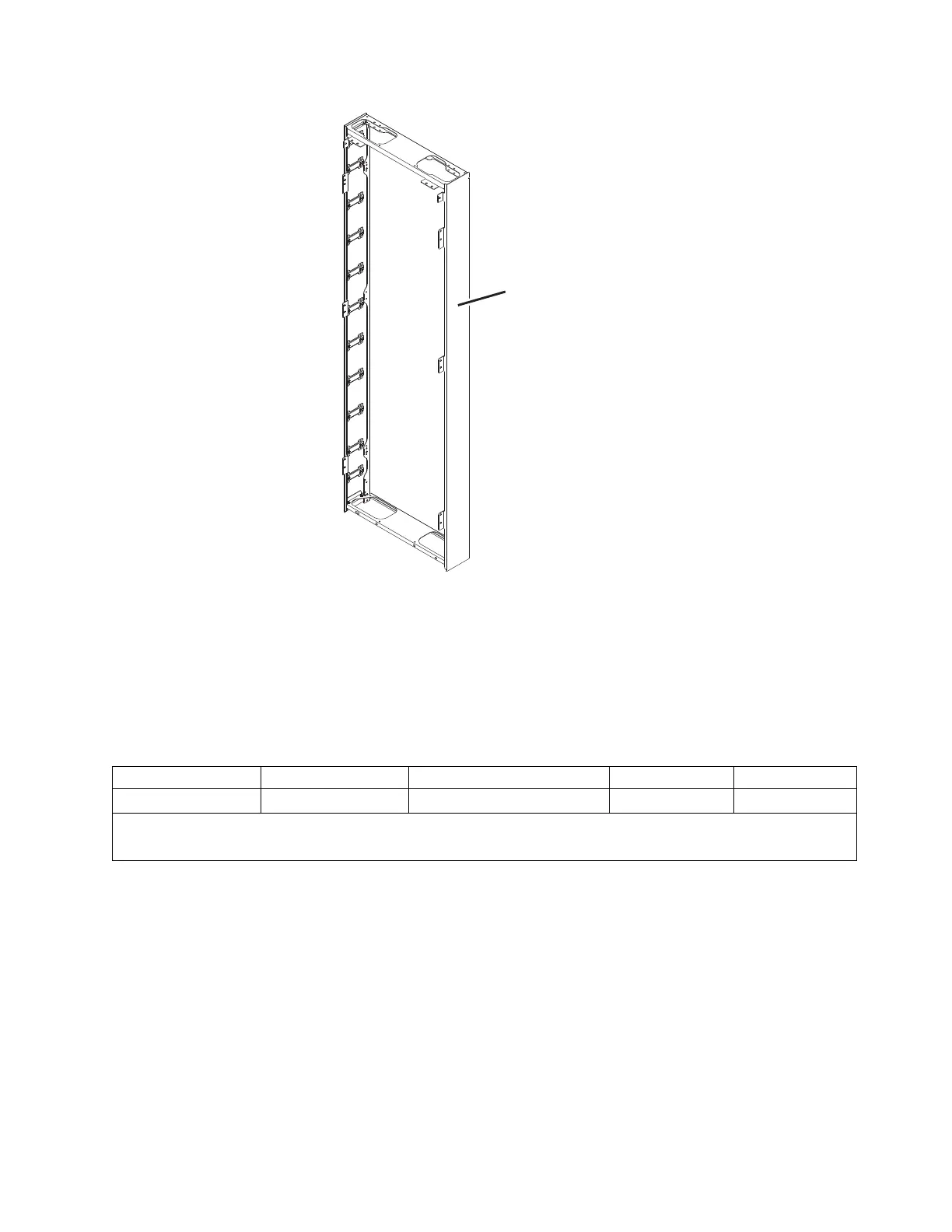

Figure 43. FC ECRK assembled view
Site and hardware planning 69
