IBM Power Systems 8202-E4B Site And Hardware Planning

5. Two PCIe3 SAS adapters with HD narrow connectors to one 5887 enclosure via a mode 1 connection.
v No cascading allowed.
v Two HD AA narrow cables are required.

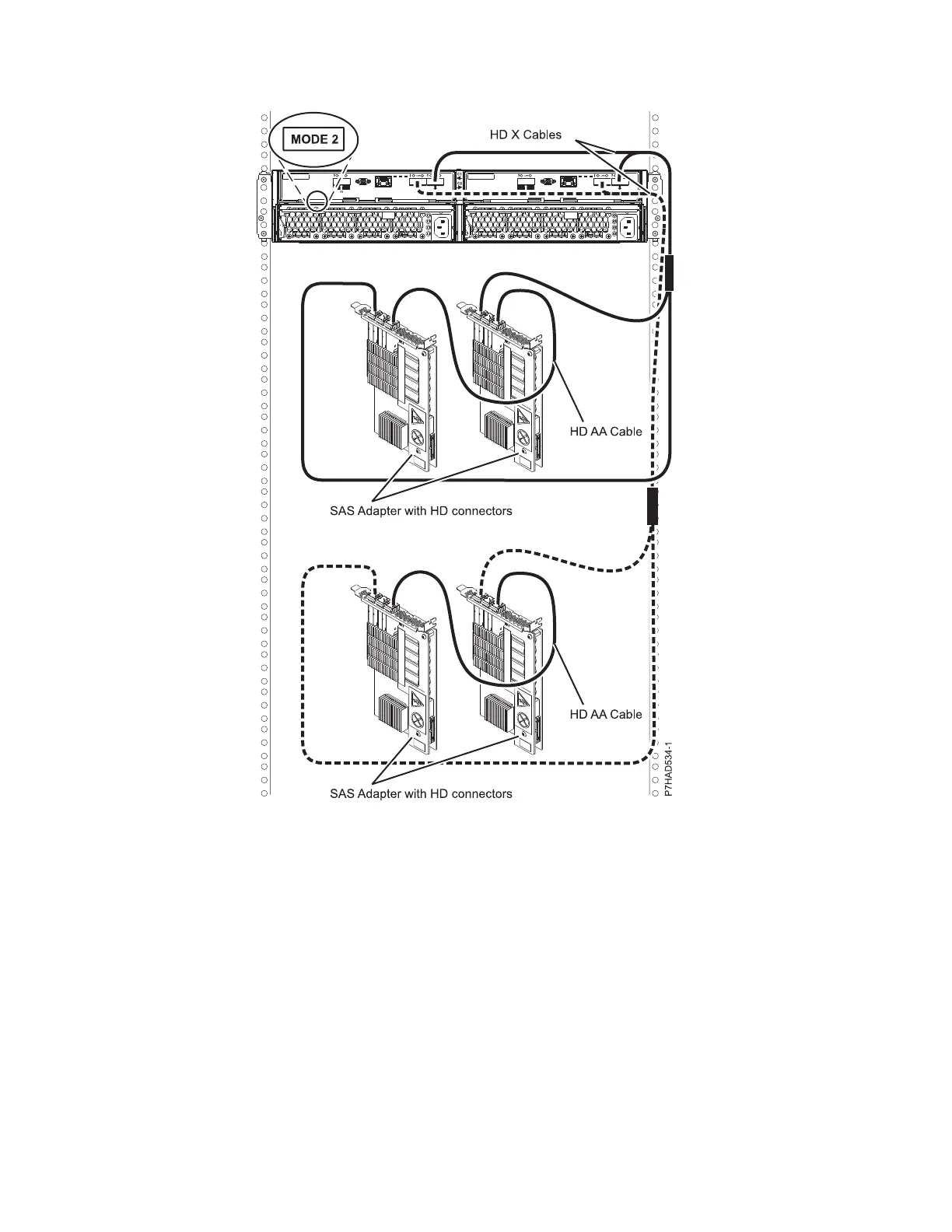

Figure 88. Mode 2 connection of a 5887 enclosure by using HD connectors to two pairs of PCIe2 SAS adapters
158 Site and hardware planning
