IBM Power Systems 8202-E4B Site And Hardware Planning

8. Four independent SAS adapters to one ESLL or ESLS storage enclosure through a mode 4 connection.
v For SAS adapter pairs, you must attach the cables to the same port on both adapters.
v Connection by using SAS X12 cables to connect to the ESLL or ESLS storage enclosure.
v Supported only on AIX and Linux systems.

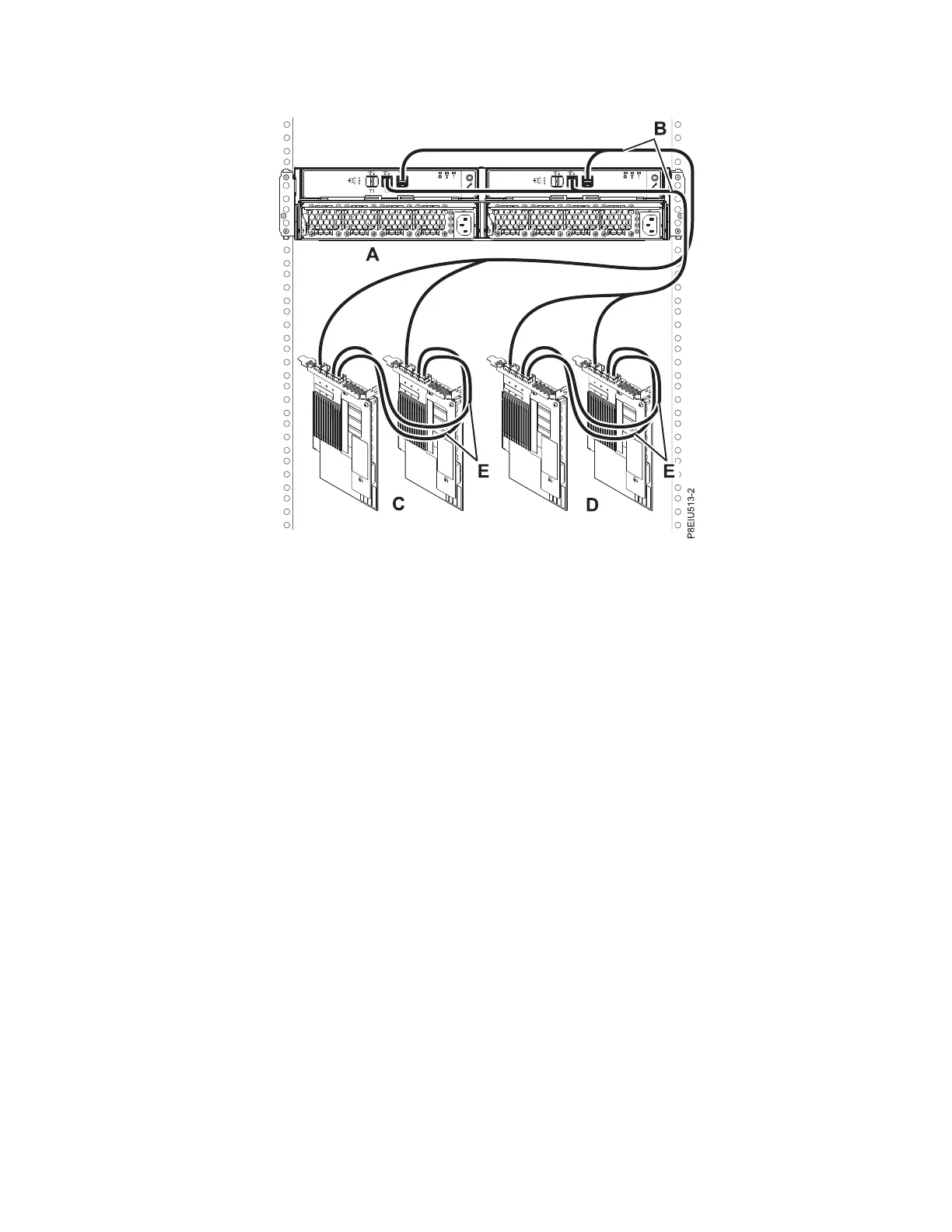

Figure 101. Mode 2 connection of one ESLL or ESLS storage enclosure by using X12 cables to two pairs of SAS
adapters
Site and hardware planning 171

IBM Power Systems 8202-E4B Specifications

General

Brand	IBM
Model	Power Systems 8202-E4B
Category	Server
Language	English
