Memory Modules
Removal of Memory Modules
1. If you have not already done so, shutdown the system as described in “Stopping
the System Unit” on page 7-4.
2. If you have not already done so, unplug the system unit power cable from the
electrical outlet.
3. If you have not already done so, remove the front, rear and left side covers as
described in “Removal of Covers” on page 7-5.
4. If you have not already done so, remove the processor and memory card cover
as described in “Removal of Processor and Memory Card Cover” on page 7-10.
5. If you have not already done so, remove the memory card as described in
“Removal of Memory Cards” on page 7-11.

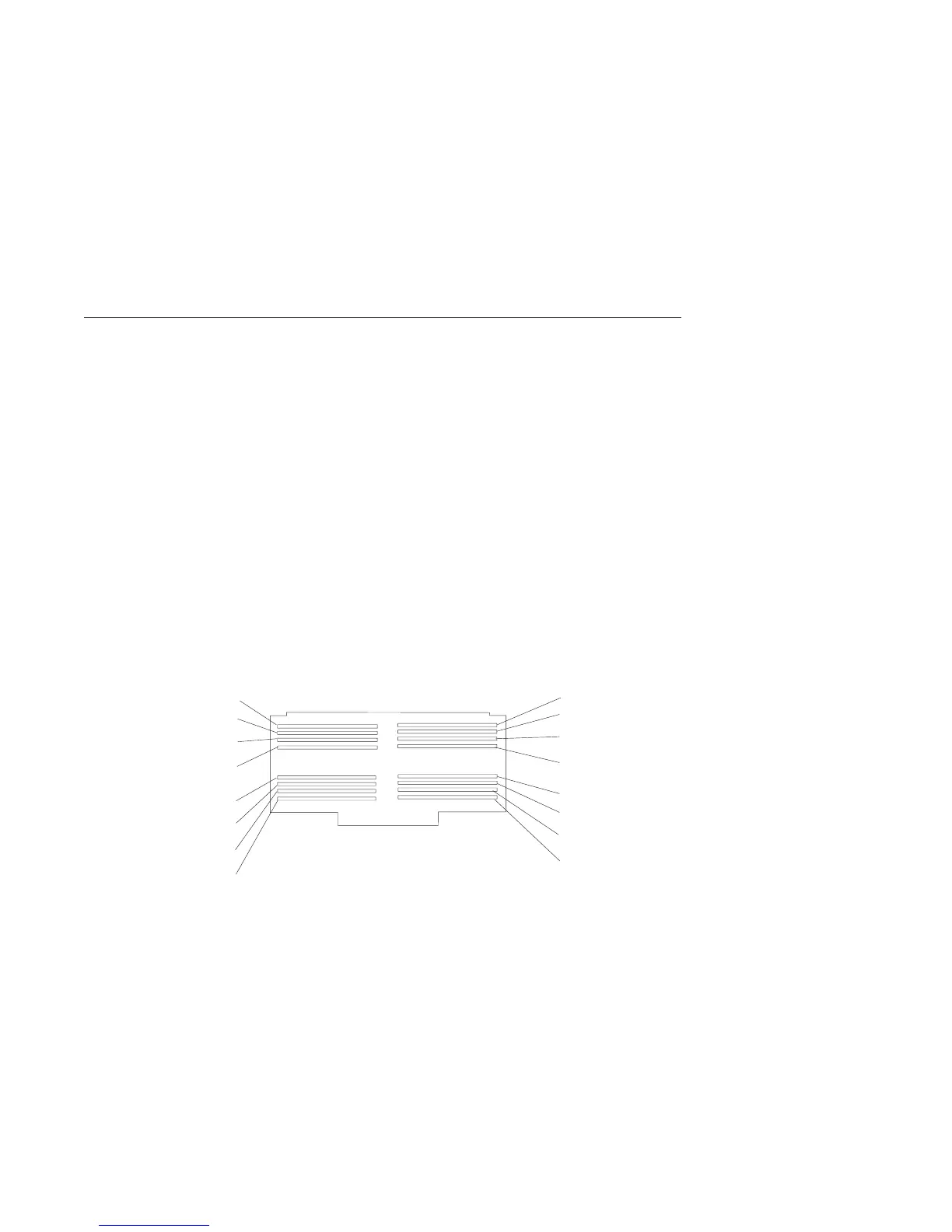

6. Locate the memory module connectors and determine which module you want to
remove.
Slot J1
Slot J3
Slot J4
Slot J2
Slot J5
Slot J6
Slot J9
Slot J10
Slot J11
Slot J12
Slot J13
Slot J14
Slot J15
Slot J16
Slot J7
Slot J8
7-14 Service Guide
