Installing an Ultra SCSI Adapter Cable in a Model 140

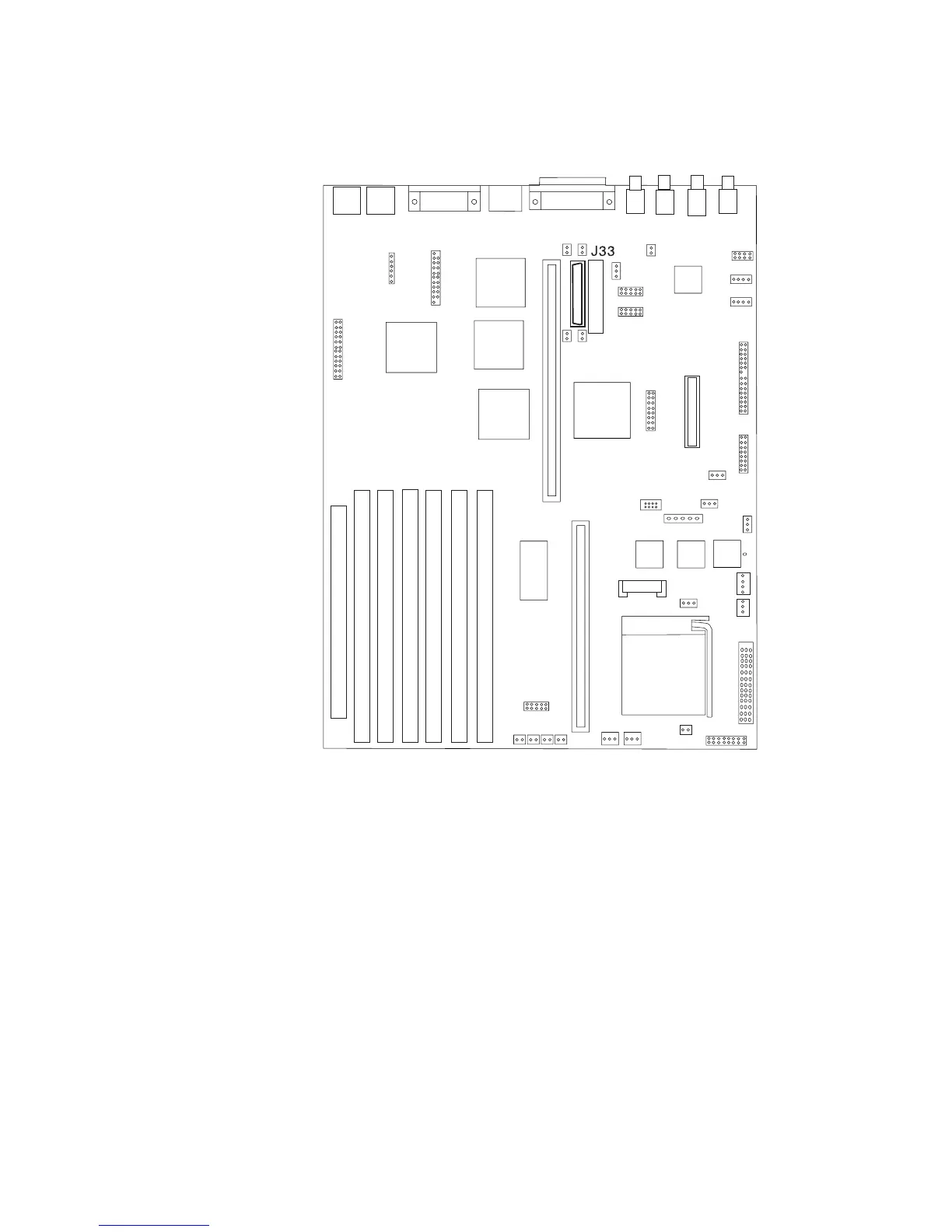

1. Unplug the SCSI cable from J33 on the system board.
2. Install the Ultra SCSI adapter in slot 5. For adapter installation instructions, see
“Installing Adapters” on page 4-70, then return here.
3. Attach the SCSI cable that you just removed from the system board to the Ultra
SCSI adapter.
Note: If any external devices are attached to the Ultra SCSI adapter, access
speeds across the entire chain attached to the Ultra SCSI adapter revert to
Fast/Wide.
Chapter 4. Installing and Removing Options 4-83
