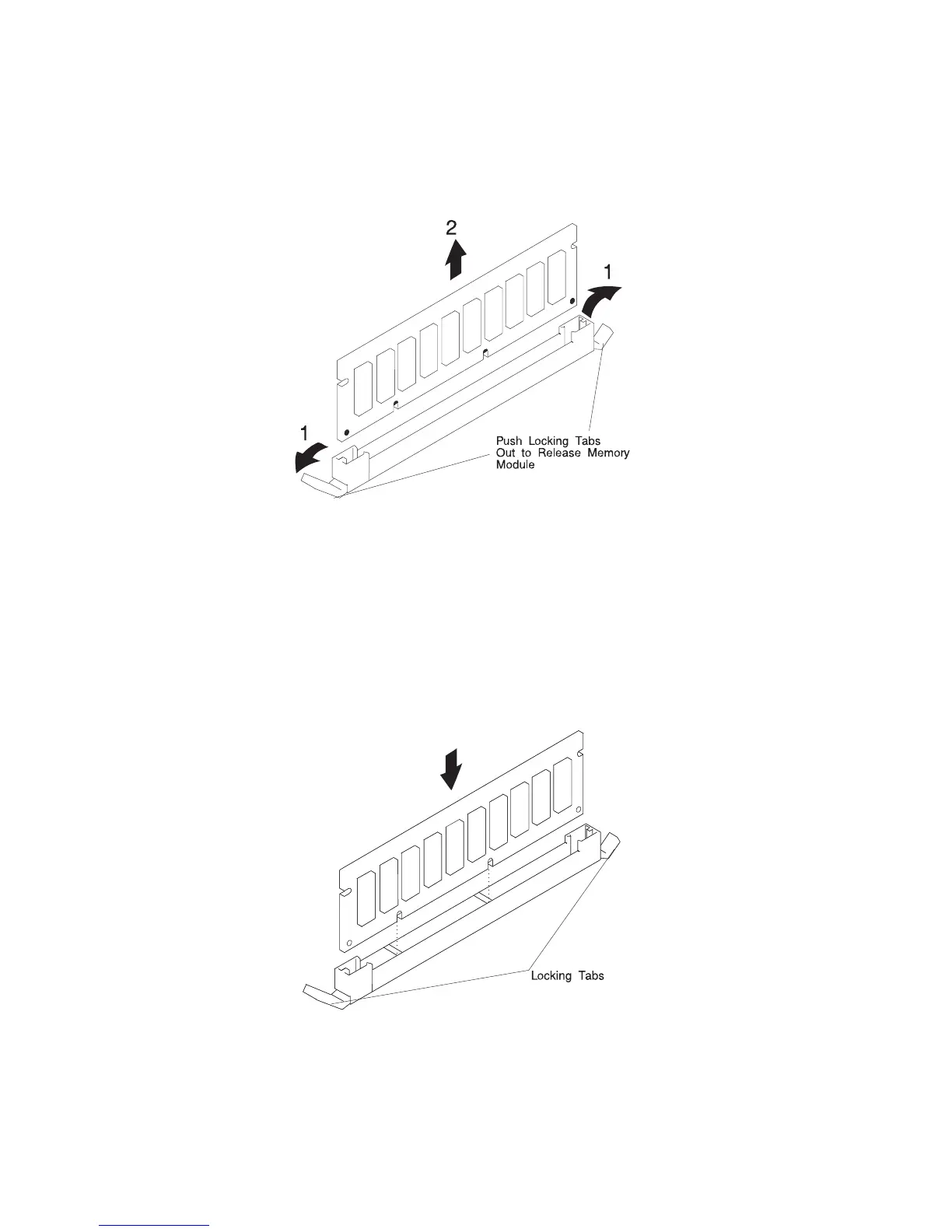

5. Remove the memory module by pushing the tabs out on the memory connectors.
Replacement
1. With one hand, touch any metal surface of the chassis to minimize static elec-
trical charges, and then pick up a memory module.
2. Locate the memory module connector location on the system board.
3. Install the new memory module by pushing down on the memory-module kit until
the latch tabs lock the memory-module kit into the connector. (Do not attempt to
move the latch tabs yourself. They lock automatically when you have fully
inserted the memory-module kit.)
Chapter 7. Removal and Replacement Procedures 7-29
