Second CPU Air Flow Duct
Removal
1. Follow the steps in “Rear Service Position” on page 7-23.

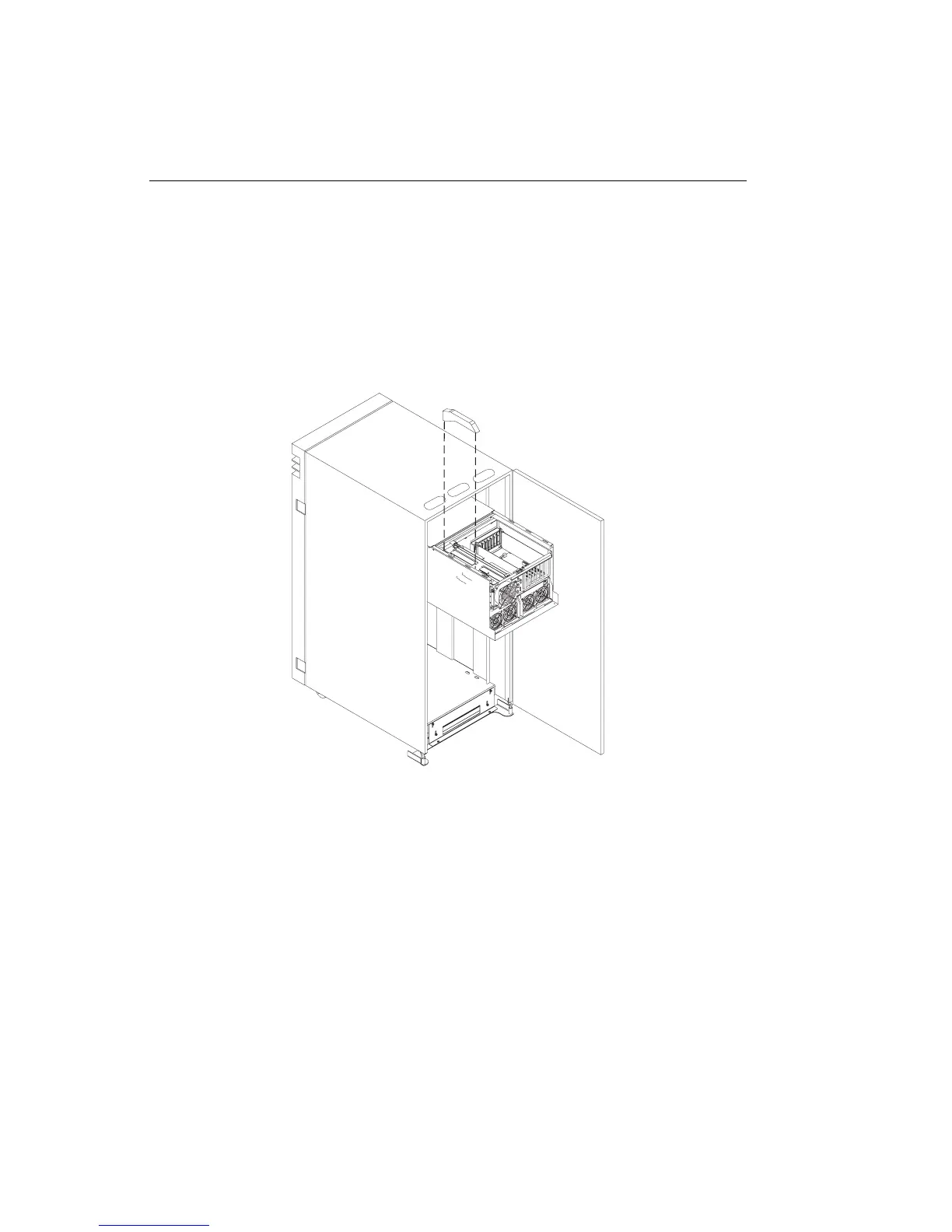

2. Carefully lift the air flow duct up and away from the second CPU on the first CPU
card.
3. Carefully lift the second air flow duct up and away from the second CPU on the
second CPU card if the system has one.
Replacement: To replace the CPU air flow duct, perform the removal steps in the
reverse order.
Chapter 7. Removal and Replacement Procedures 7-31
