Battery
CAUTION:
A lithium battery can cause fire, explosion, or severe burn. Do not recharge,
disassemble, heat above 100°C (212°F), solder directly to the cell, incinerate, or
expose cell contents to water. Keep away from children. Replace only with
the part number specified for your system. Use of another battery may present
a risk of fire or explosion.
The battery connector is polarized; do not attempt to reverse polarity.
Dispose of the battery according to local regulations.
Removal
1. Place the drawer in the rear service position, as described in “Rear Service
Position” on page 7-23.

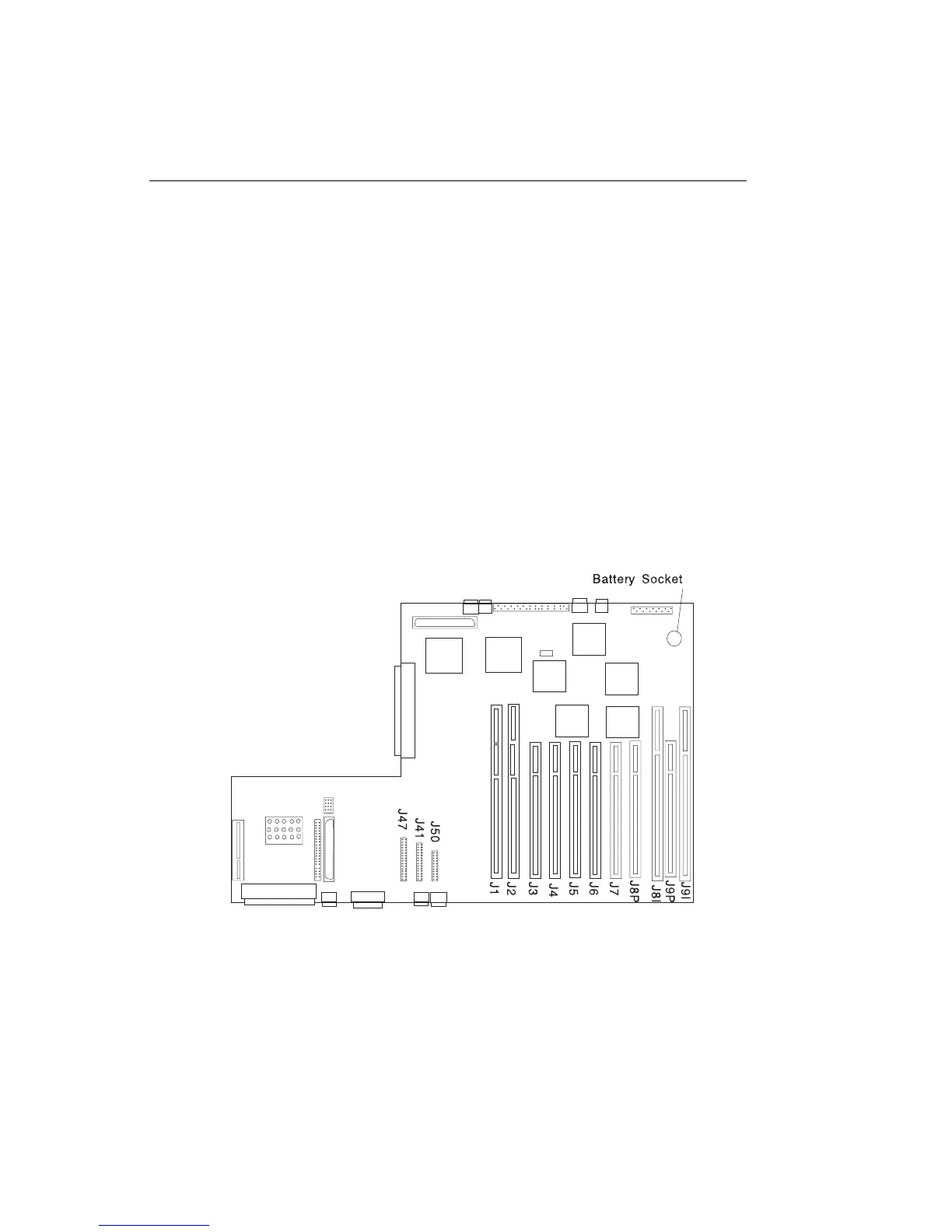

2. Locate the battery on the system board.
Chapter 7. Removal and Replacement Procedures 7-39
