ServeRAID M5210 SAS/SATA Controller for IBM System x User’s Guide
July 2014
Chapter 3: ServeRAID M5210 SAS/SATA Controller Characteristics
Board Layout and Connector Information
Chapter 3: ServeRAID M5210 SAS/SATA Controller Characteristics
3.1 Board Layout and Connector Information
This subsection provides the board layout and connector information for the controller. The following subsections
provide graphics and connector information for the controller.

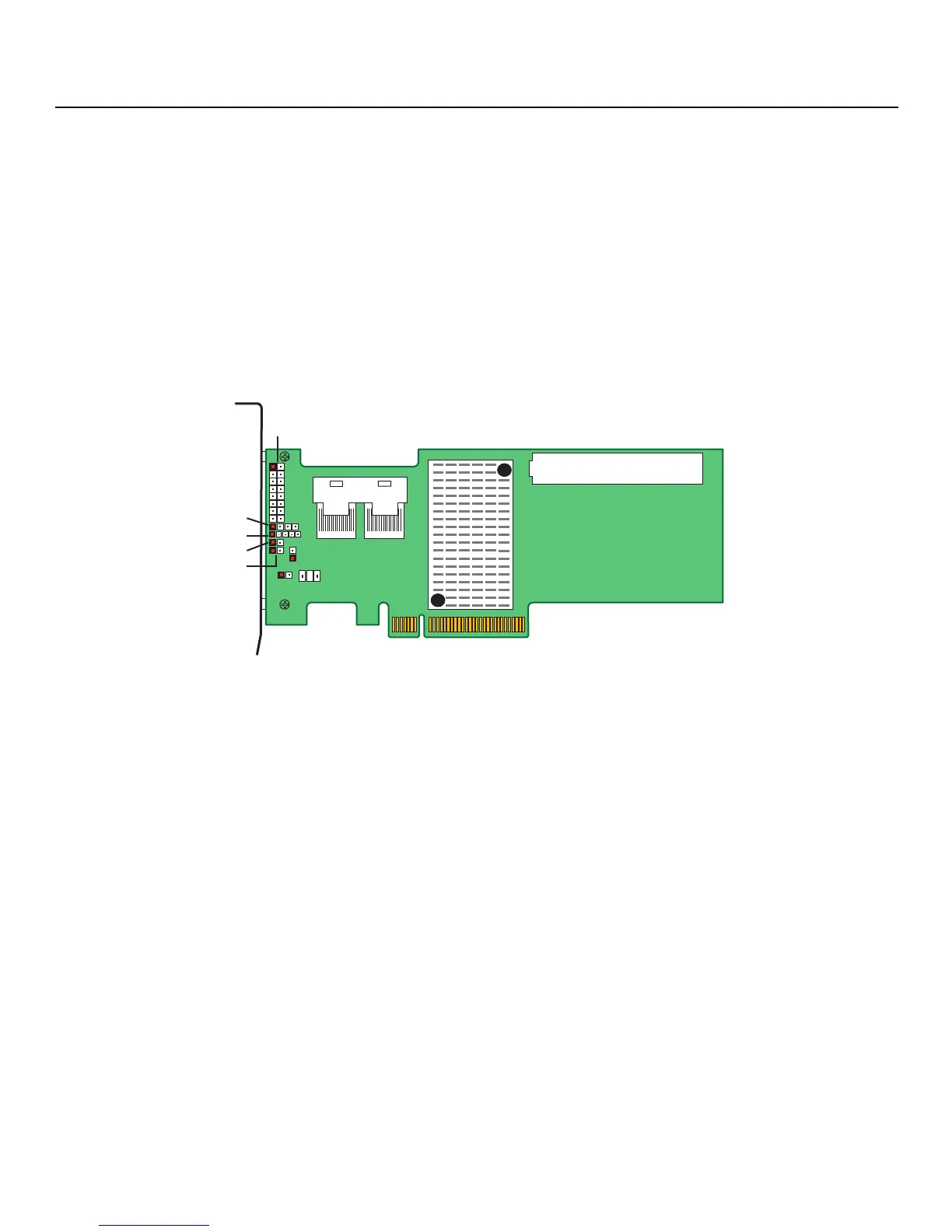

The following figure displays the connectors on the controller, which are described on Table 1. Pin 1 on each
connector is highlighted in red
Figure 1 Card Layout for the ServeRAID M5210 SAS/SATA Controller
3_01857-00
J1A1 J6A1
J1A2
J1B1
J2B4
J1B7
J1B3
J1B2
J1B4
J1B5
J1B6
J4A1
