Characteristics of the ServeRAID M5210 SAS/SATA Controller
3.2 Characteristics of the ServeRAID M5210 SAS/SATA Controller

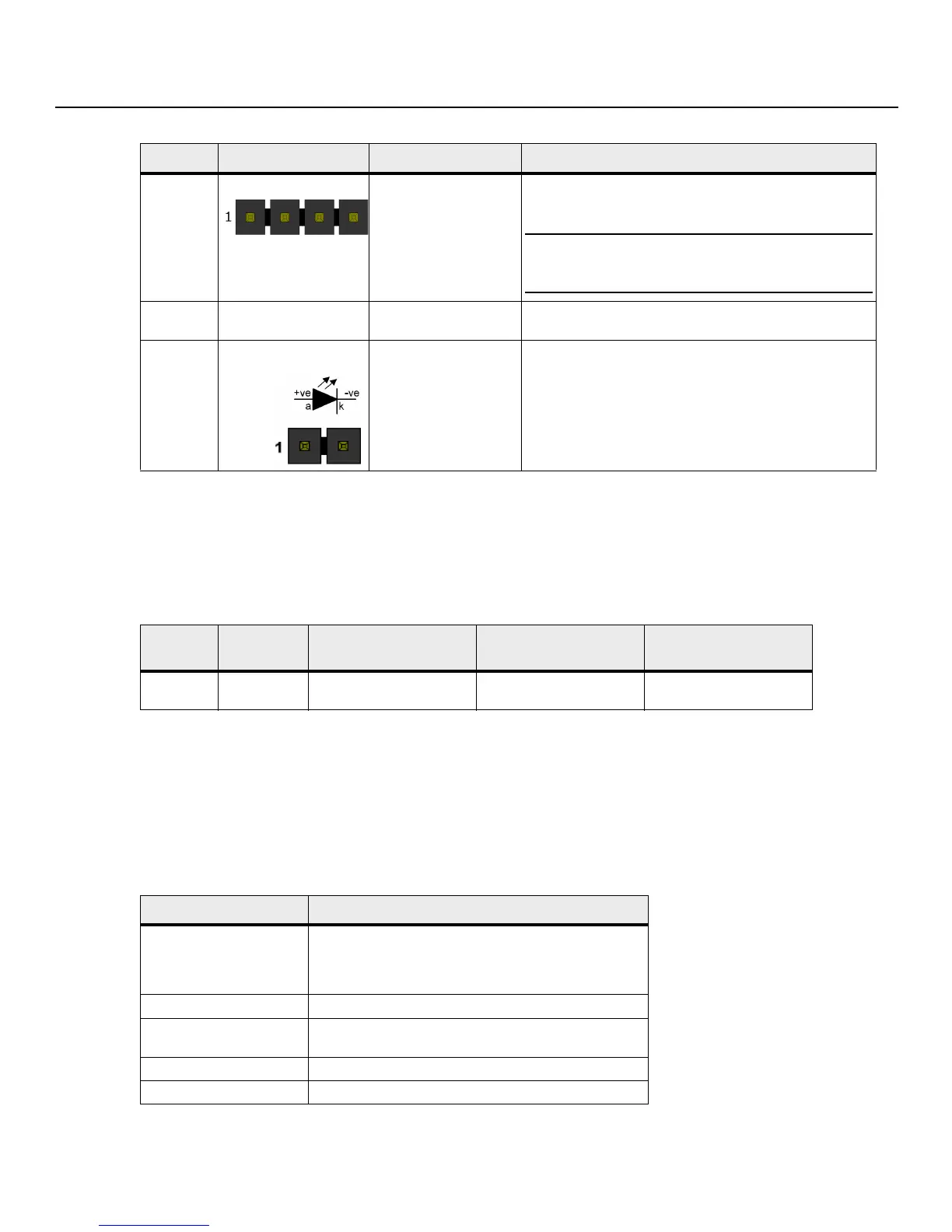

Table 2 shows the general characteristics of the ServeRAID M5210 SAS/SATA controller
The controller ensures data integrity by intelligently validating the compatibility of the SAS domain. The controller
Fusion-MPT architecture allows for thinner device drivers and better performance.
3.2.1 Controller Specifications
Table 3 lists the specifications for the ServeRAID m5210 SAS/SATA controller.
J1B7 UART Header 4-pin Connector Provides access to an external UART dongle for serial
communications access to each of the internal processors
within the SAS3108 ROC.
NOTE Signaling levels are +1.8Vdc and need a special ongle
for the correct interface. UART pins are clamped to +1.8Vdc
on the controller to protect the ROC.
J4A1 Local Cache Offloader
Connecter
300-pin Board-to-Board
Connector
Used to connect one of 4 transportable memory
modules available for the ServeRAID M5210 controller.
J6A1 Global Drive Fault LED
Header
2-pin Connector A connected LED that indicates a failure in an attached
drive.
Table 2 SAS\SATA Controller Characteristics
Flash ROM
Serial
EEPROM
SAS Data Transfers SCSI Features SCSI Termination
Yes Yes Up to 12 Gb/s per port Plug and Play
Scatter/Gather Activity LED
Active
Table 3 Controller Specifications
Specification ServeRAID M5210 SAS/SATA
Processor
(PCI Express Host
Controller to PCI
Secondary I/O Controller)
LSISAS3108 ROC device with Integrated PowerPC
processor
Operating Voltage +3.3 V, +12 V
Card Size Low profile PCI Express controller card size
(2.713"
x 6.6")
Array Interface to Host PCI Express Rev 3.0
Type of Drives Supported Serial Attached SCSI (SAS) and Serial ATA (SATA)
Table 1 Controller Connectors
Connector Description Type Comments
