About this task
This task assumes that the following conditions are met:
v You removed the PSU, following the procedure described in “Removing a power
supply: 2077-92F” on page 103.
v You removed the fascia that covers the PSU from the front of the expansion
enclosure, as described in “Removing the fascia: 2077-92F” on page 85.
v You are aware of the procedures for handling static-sensitive devices.
Procedure
1. Read all safety information.
2. Rotate the handles on the PSU outward, as shown in Figure 70.
3. Slide the PSU forward into the chassis until it clicks in to place, as shown in
Figure 71 on page 84.

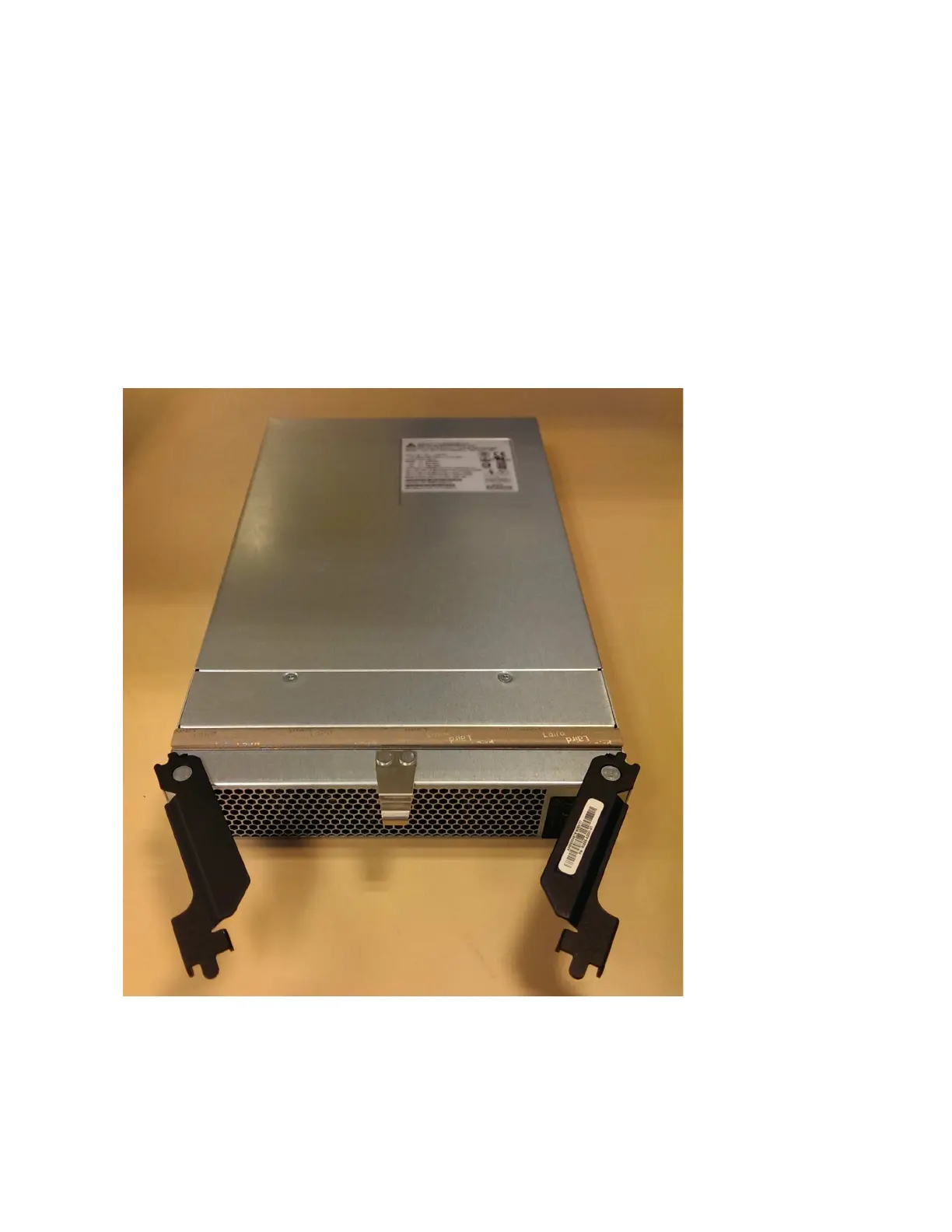

Figure 70. Preparing to install the power supply
Chapter 2. Installing the system hardware 83
