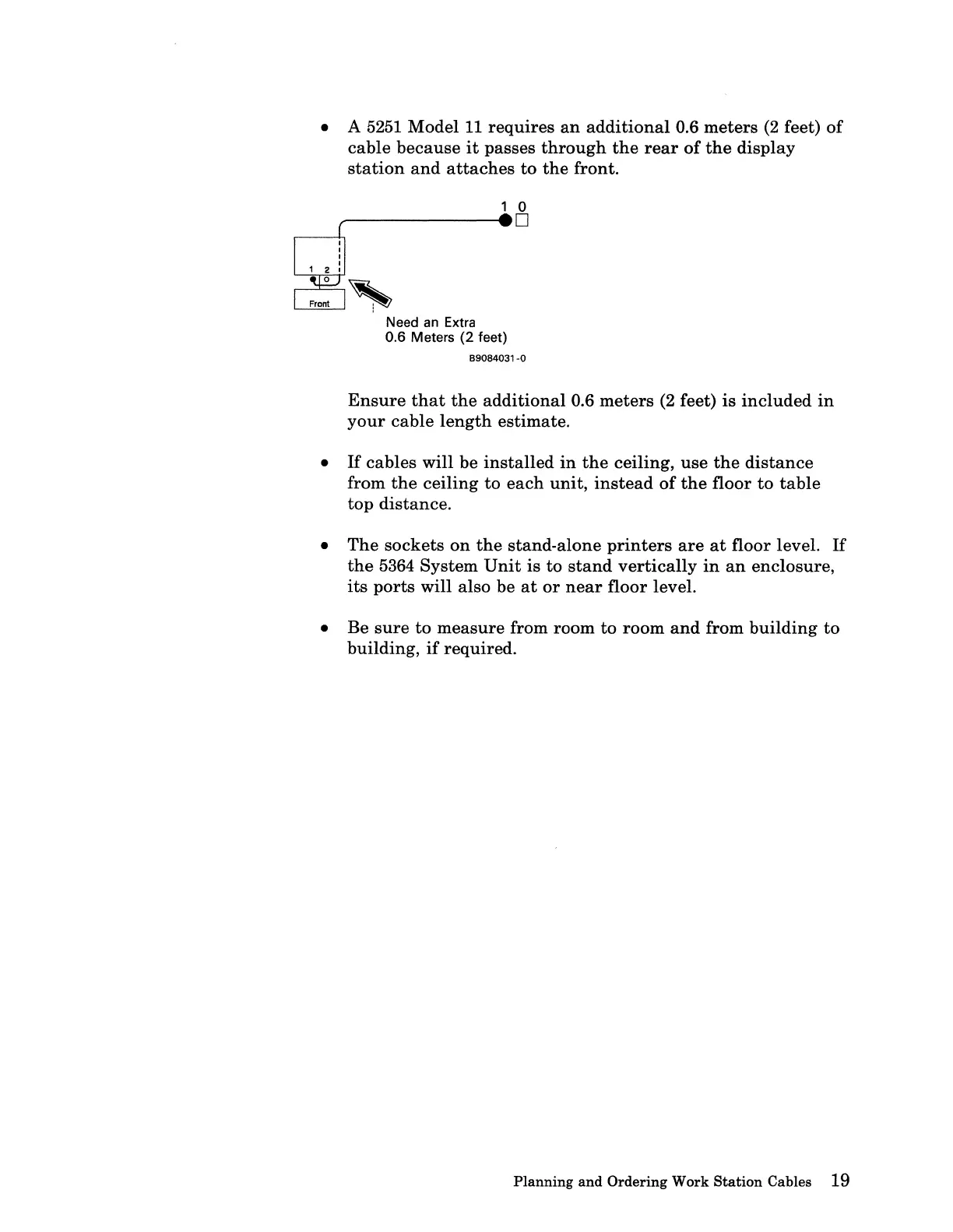

• A 5251 Model 11 requires an additional 0.6 meters (2 feet) of
cable because it passes through the rear of the display
station and attaches to the front.
0
,------------4• D
~~
Need an Extra
0.6 Meters (2 feet)
69084031-0
Ensure that the additional 0.6 meters (2 feet) is included in
your cable length estimate.
• If cables will be installed in the ceiling, use the distance
from the ceiling to each unit, instead of the floor to table
top distance.
• The sockets on the stand-alone printers are at floor level. If
the 5364 System Unit is to stand vertically in an enclosure,
its ports will also be at or near floor level.
• Be sure to measure from room to room and from building to
building, if required.
Planning and Ordering Work Station Cables 19
