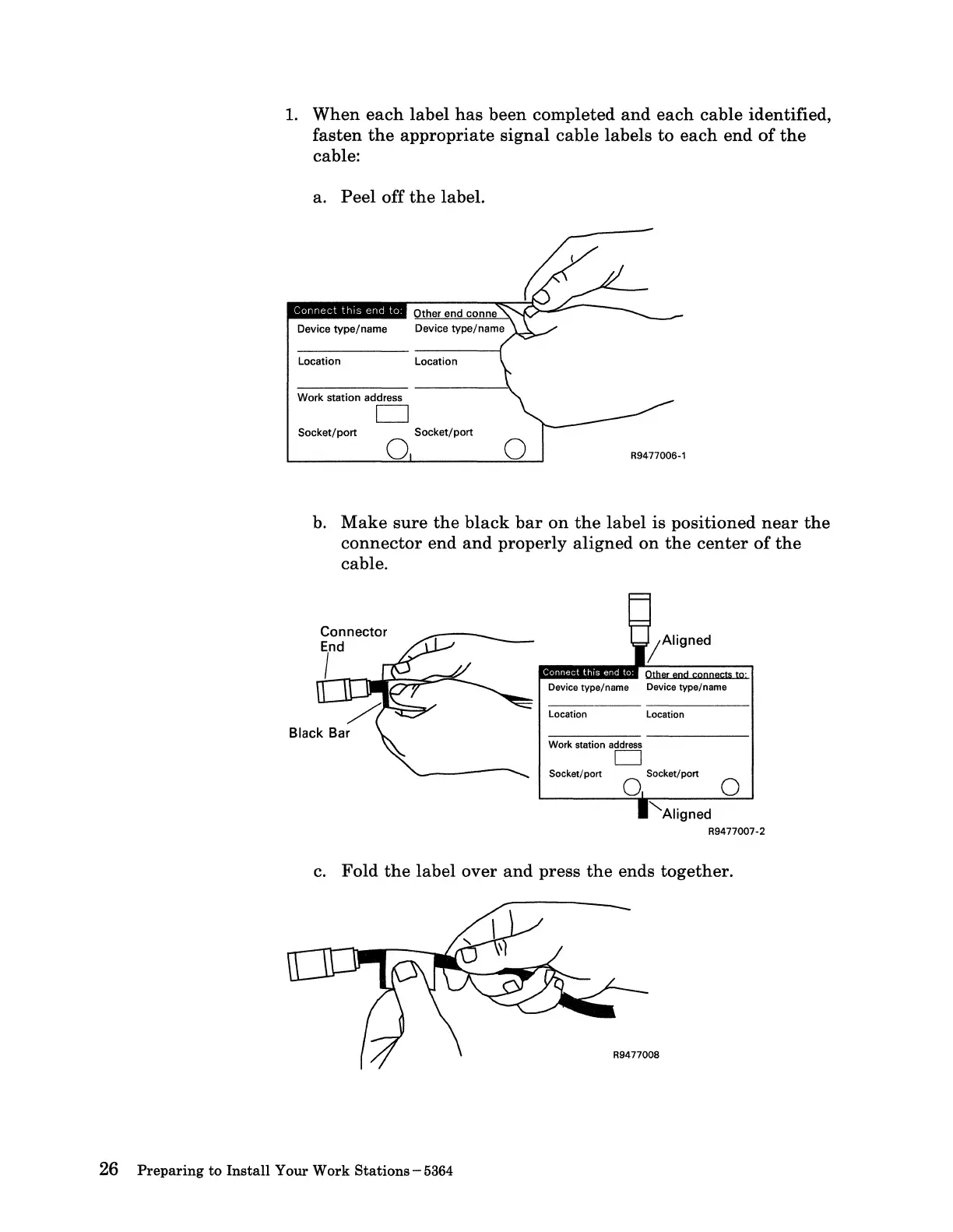

1. When each label has been completed and each cable identified,
fasten the appropriate signal cable labels to each end of the
cable:
a. Peel off the label.
Connect this end to
Device type/name
Location
Work station address
D
Other end conne
Device type/name
Location
Socket/port Socket/port
0 0
R9477006-1
b. Make sure the black bar on the label is positioned near the
connector end and properly aligned on the center of the
cable.
Connector
rd
Black Bar
/Aligned
Other end connects to·
Device type/name Device type/name
Location
Location
Work station address
D
Socket/ port Socket/port
0 0
'Aligned
R9477007-2
c. Fold the label over and press the ends together.
26 Preparing to Install Your Work Stations - 5364
