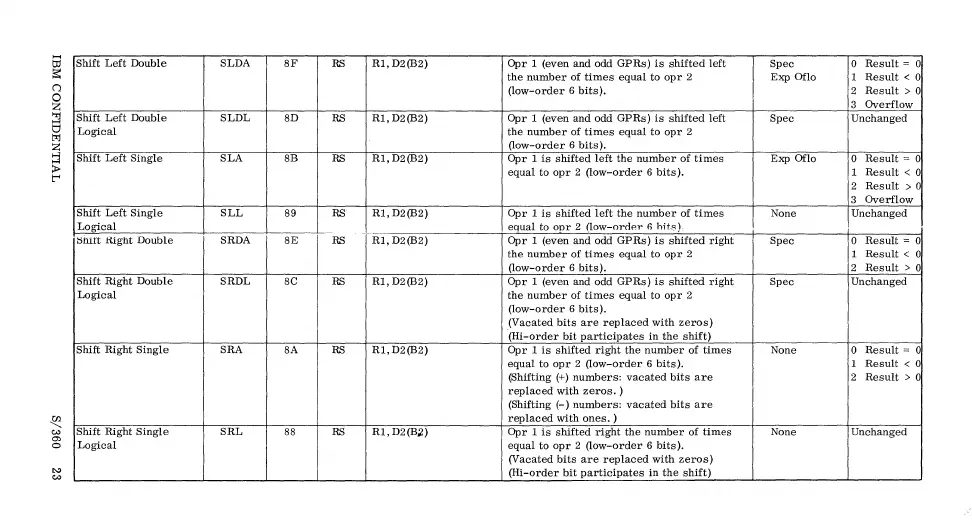

IBM System/360 Field Engineering Manual

Shift Left Double SLDA SF
RS
Rl, D2(B2)
Opr 1 (even and odd GPRs) is shifted left Spec 0 Result = 0
the number of times equal to opr 2 Exp Oflo 1 Result < 0
(low-order 6 bits).
2 Result > O
3
Overflow
Shift Left Double SLDL SD
RS
Rl,D2(B2)
Opr 1 (even and odd GPRs) is shifted left Spec Unchanged
Logical
the number of times equal to opr 2
(low-order 6 bits).
Shift Left Single SLA SB
RS
Rl,D2(B2) Opr 1 is shifted left the number of times Exp Oflo
0 Result= 0
equal to opr 2 (low-order 6 bits). 1 Result < 0
2 Result > 0
3
Overflow
Shift Left Single SLL
S9 RS
Rl, D2(B2)
Opr 1 is shifted left the number of times None Unchanged
Logical equal to opr 2 (low-order fi hihl)
--"~-
tlh1tt Right Double
SRDA
SE RS Rl, D2(B2) Opr 1 (even and odd GPRs) is shifted right
Spec 0
Result - 0
the number of times equal to opr 2 1
Result < O
(low-order 6 bits). 2 Result > 0
Shift Right Double SRDL SC
RS
Rl, D2(B2) Opr 1 (even and odd GPRs) is shifted right
Spec Unchanged
Logical
the number of times equal to opr 2
(low-order 6 bits).
(Vacated bits are replaced with zeros)
(Hi-order bit participates in the shift)
Shift Right Single SRA BA RS Rl,D2(B2) Opr 1 is shifted right the number of times None
0
Result= O
equal to opr 2 (low-order 6 bits).
1 Result < 0
(Shifting (+) numbers: vacated bits are 2 Result > 0
replaced with zeros.)
(Shifting (-)numbers: vacated bits are
replaced with ones.)
Shift Right Single SRL
88 RS Rl,D2(B~) Opr 1 is shifted right the number of times
None
Unchanged
Logical
equal to opr 2 (low-order 6 bits).
(Vacated bits are replaced with zeros)
(Hi-order bit participates in the shift)
