IBM System/360 Field Engineering Manual

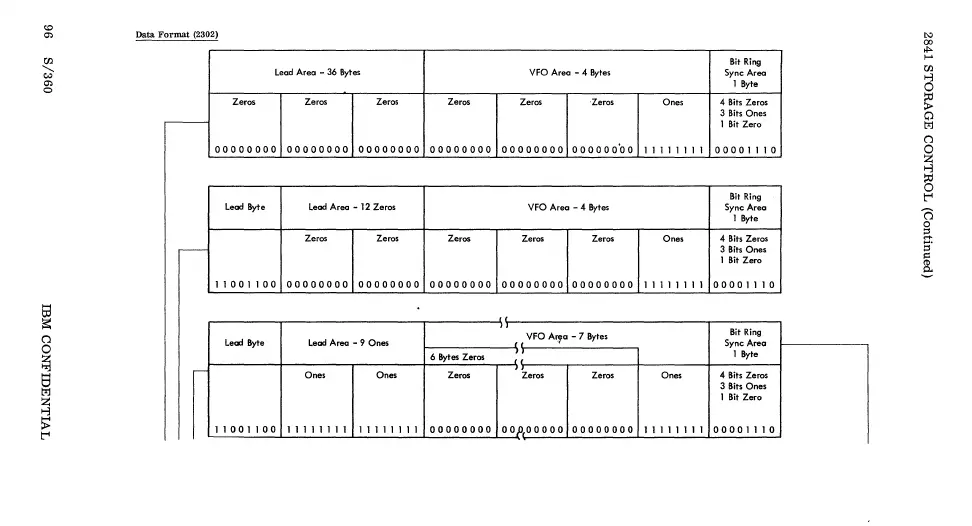

Data Format (2302)
~
Lead Area - 36 Bytes
VFO Area - 4 Bytes
Zeros Zeros Zeros Zeros
Zeros Zeros Ones
Bit Ring
Sync Area
l Byte
4 Bits Zeros
3 Bits Ones
l Bit Zero
00000000 00000000 00000000 00000000 00000000 oooooobo 11111111 00001110
Lead Byte Lead Area - 12 Zeros
Zeros Zeros Zeros
VFO Area - 4 Bytes
Zeros Zeros
Bit Ring
Sync Area
l Byte
4 Bits Zeros
3 Bits Ones
I Bit Zero
11001100 00000000 00000000 00000000 00000000 00000000 1111111100001110
VFO Affa - 7 Bytes
Bit Ring
Lead Byte Lead Area - 9 Ones Sync Area
6 Bytes Zeros
l Byte
Ones One>
z • ..,.
Zeros Zeros One> 4 Bits Zeros
3 Bits Ones
I Bit Zero
l 100 I 100 11111111
11111111 00000000 o op,o o o o o 00000000 11111111 00001110
