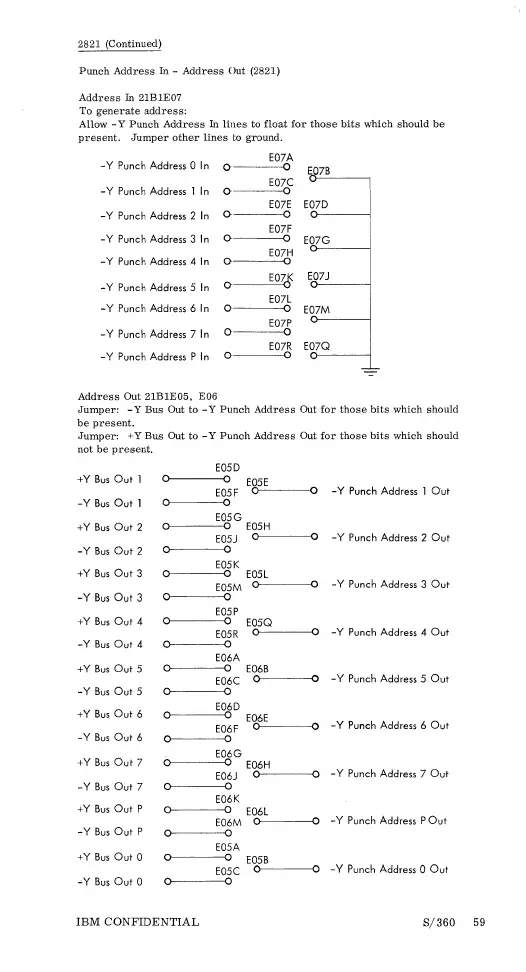

IBM System/360 Field Engineering Manual

2821 (Continued)
Punch Address In - Address Out (2821)
Address In 21B1E07
To generate address:
Allow - Y Punch Address In lines to float for those bits which should be
present. Jumper other lines to ground.
-Y Punch Address 0 In
EO?A
0------0
?B
-Y Punch Address 1 In
E07C
0------0
EO?E EO?D
-Y Punch Address 2 In
0------0
EO?F
-Y Punch Address 3 In
0------0
EO?G
-Y Punch Address 4 In
EO?H
0------0
o~
EO?J
-Y Punch Address 5 In
EO?L
-Y Punch Address 6 In 0------0
EO?M
EO?P
-Y Punch Address 7 In
0------0
EO?R EO?Q
-Y Punch Address P In
0------0
Address Out 21B1E05, E06
Jumper: - Y Bus Out to - Y Punch Address Out for those bits which should
be present.
Jumper: + Y Bus Out to - Y Punch Address Out for those bits which should
not be present.
E05D
+Y Bus Out 1
Q-----------0
E05E
E05F
0------0 -Y Punch Address 1 Out
-Y Bus Out 1
Q-----------0
E05G
+Y Bus Out 2
o--------0 E05H
E05J
0------0
-Y Punch Address 2 Out
-Y Bus Out 2
o--------0
+Y Bus Out 3
E05K
Q-----------0
E05L
E05M
0------0
-Y Punch Address 3 Out
-Y Bus Out 3
Q-----------0
E05P
+Y Bus Out 4
Q-----------0
E05Q
E05R
0------0 -Y Punch Address 4 Out
-Y Bus Out 4 o--------0
E06A
+Y Bus Out 5
Q-----------0
E06B
E06C
0------0 -Y Punch Address 5 Out
-Y Bus Out 5 o--------0
+Y Bus Out 6
E06D
o--------0
E06E
E06F
0------0
-Y Punch Address 6 Out
-Y Bus Out 6
o--------0
E06G
+Y Bus Out 7
o--------0
E06H
E06J
0------0
-Y Punch Address 7 Out
-Y Bus Out 7 o--------0
E06K
+Y Bus Out P
0------------0
E06L
E06M
0------0
-Y Punch Address P Out
-Y Bus Out P
o--------0
E05A
+Y Bus Out 0
o--------0
E05B
E05C
0------0 -Y Punch Address 0 Out
.-y Bus Out 0
0------------0
IBM CONFIDENTIAL
S/360
59
