IBM System/360 Field Engineering Manual

2821 (Continued)

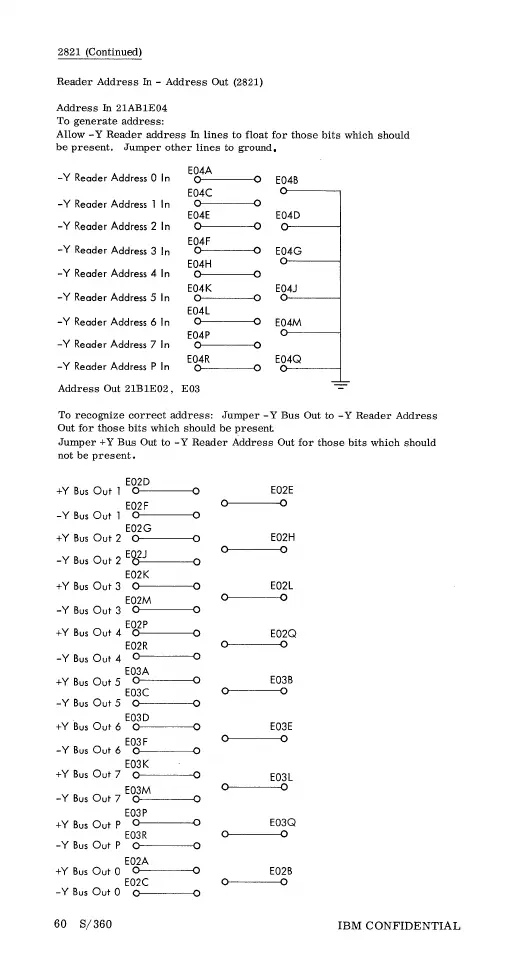

Reader Address In - Address Out (2821)
Address In 21AB1E04
To generate address:
Allow - Y Readar address In lines to float for those bits which should
be present. Jumper other lines to ground.
-Y Reader Address 0 In
E04A
0-------0
E04B
E04C
"
-Y Reader Address l In
0-------0
E04E E04D
-Y Reader Address 2 In
0------0
v-
E04F
-Y Reader Address 3 In 0-------0
eg_4G
E04H
-Y Reader Address 4 In
0------0
E04K
E~4J
- Y Reader Address 5 In
0-------0
E04L
-Y Reader Address 6 In
0------0
E04M
-Y Reader Address 7 In
E04P
0-------0
-Y Reader Address P In
E04R E04Q
0-------0
~
--'--
Address Out 21B1E02,
E03
To recognize correct address: Jumper - Y Bus Out to -Y Reader Address
Out for those bits which should be 1_>resent
Jumper + Y Bus Out to - Y Reader Address Out for those bits which should
not be present.
E02D
+Y Bus Out 1 0-------0
E02F
-Y Bus Out 1 0-------0
E02G
+Y Bus Out 2 0-------0
-Y Bus Out 2 E~
E02K
+Y Bus Out 3 0-------0
E02M
-Y Bus Out 3 0-------0
+Y Bus Out 4 E~
E02R
-Y Bus Out 4 0-------0
E03A
+Y Bus Out 5 0-------0
E03C
-Y Bus Out 5 0------0
E03D
+Y Bus Out 6 0------0
E03F
-Y Bus Out 6 0------0
E03K
+Y Bus Out 7 0-------0
-Y Bus Out 7 E~
E03P
+Y Bus Out P 0------0
E03R
-Y Bus Out P 0-------0
E02A
+Y Bus Out 0 0------0
E02C
-Y Bus Out 0 0------0
60 S/360
E02E
0-------0
E02H
0------0
E02L
0------0
E02Q
0------0
E03B
0------0
E03E
0------0
EOJL
0------0
E03Q
0------0
E02B
0------0
IBM CONFIDENTIAL
