IBM System/370

Problem Determination

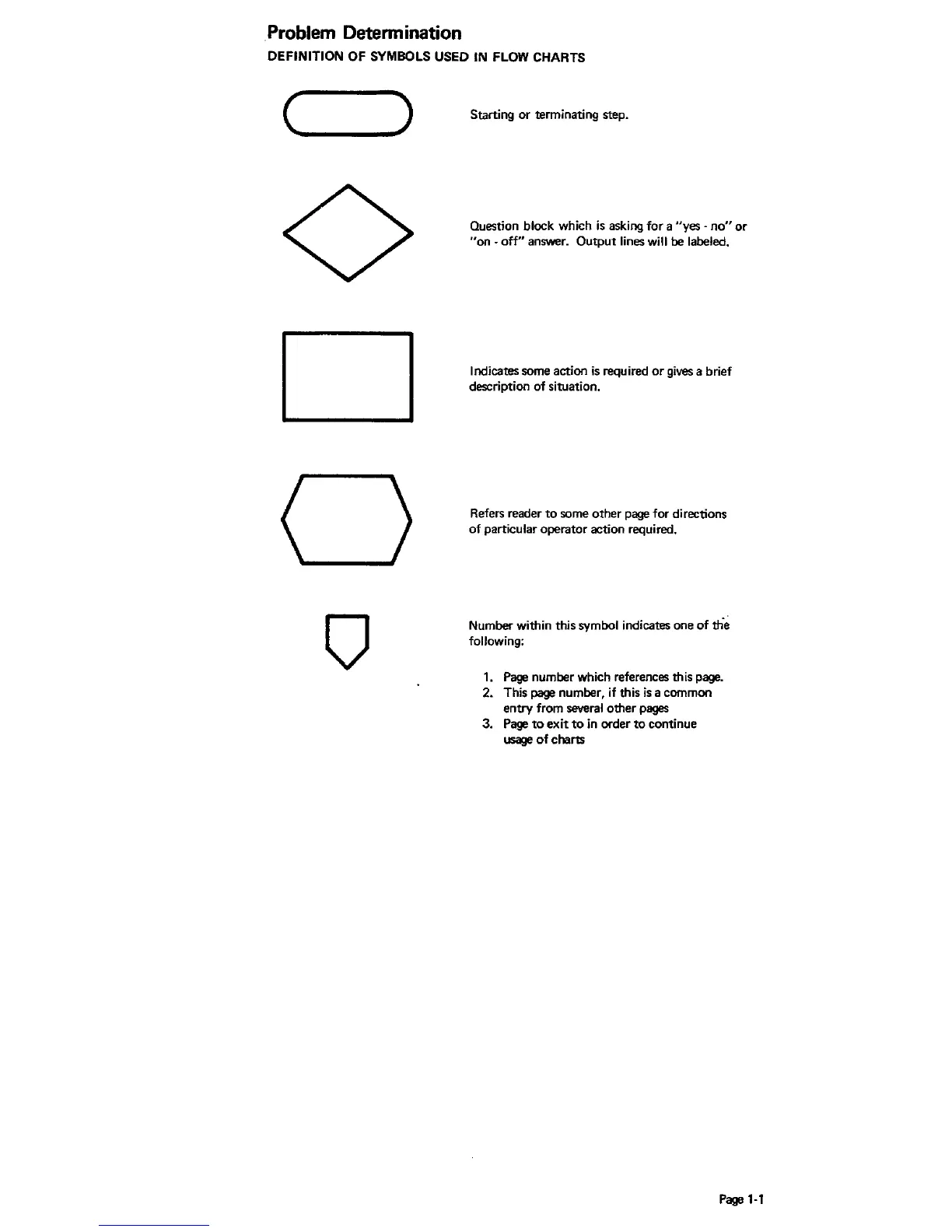

DEFINITION OF SYMBOLS USED IN FLOW CHARTS
(
)
<>
D
o
Starting or terminating step.
Question
block which is asking for a "yes· no" or
"on - off" answer. Output lines will be labeled.
Indicates some action is required or gives a brief
description
of situation.
Refers reader
to some other page for di rections
of particular operator action required.
Number within this symbol indicates one
of the
following:
1. Page number which references this page.
2. This
page number, if this is a common
entry from several other
pages
3. Page to exit to in order to continue
usage of charts
Page 1-1
