IBM System x3250 M4 At-A-Glance Guide

IBM System x3250 M4 3

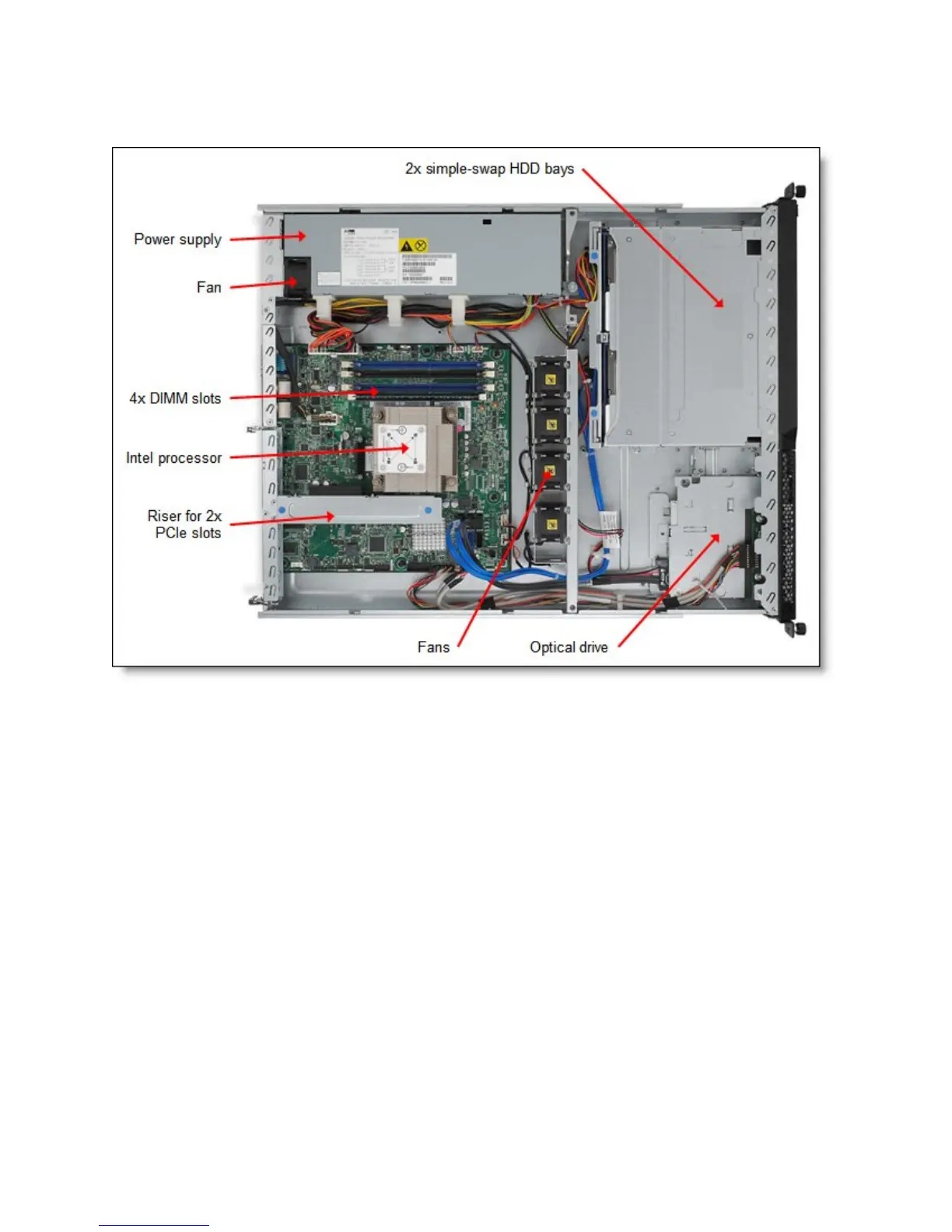

Figure 4 shows the locations of key components inside the server.
Figure 4. IBM System x3250 M4 rack server (inside view)

IBM System x3250 M4 Specifications

General

Processor	Intel Xeon E3-1200 v2 series
Max Processors	1
Memory Slots	4
Network Interface	2 x Gigabit Ethernet
Memory	Up to 32 GB
Storage	Up to 4 x 3.5-inch or 8 x 2.5-inch drives
RAID Support	RAID 0, 1, 10
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Chipset	Intel C204
