Step Size (Quantity) Color Torque
2 M2 x L4(2) Silver 2.5 kgf-cm
3 M2.5 x L6(2) Black 2.5 kgf-cm
3
4
5
6
7
3

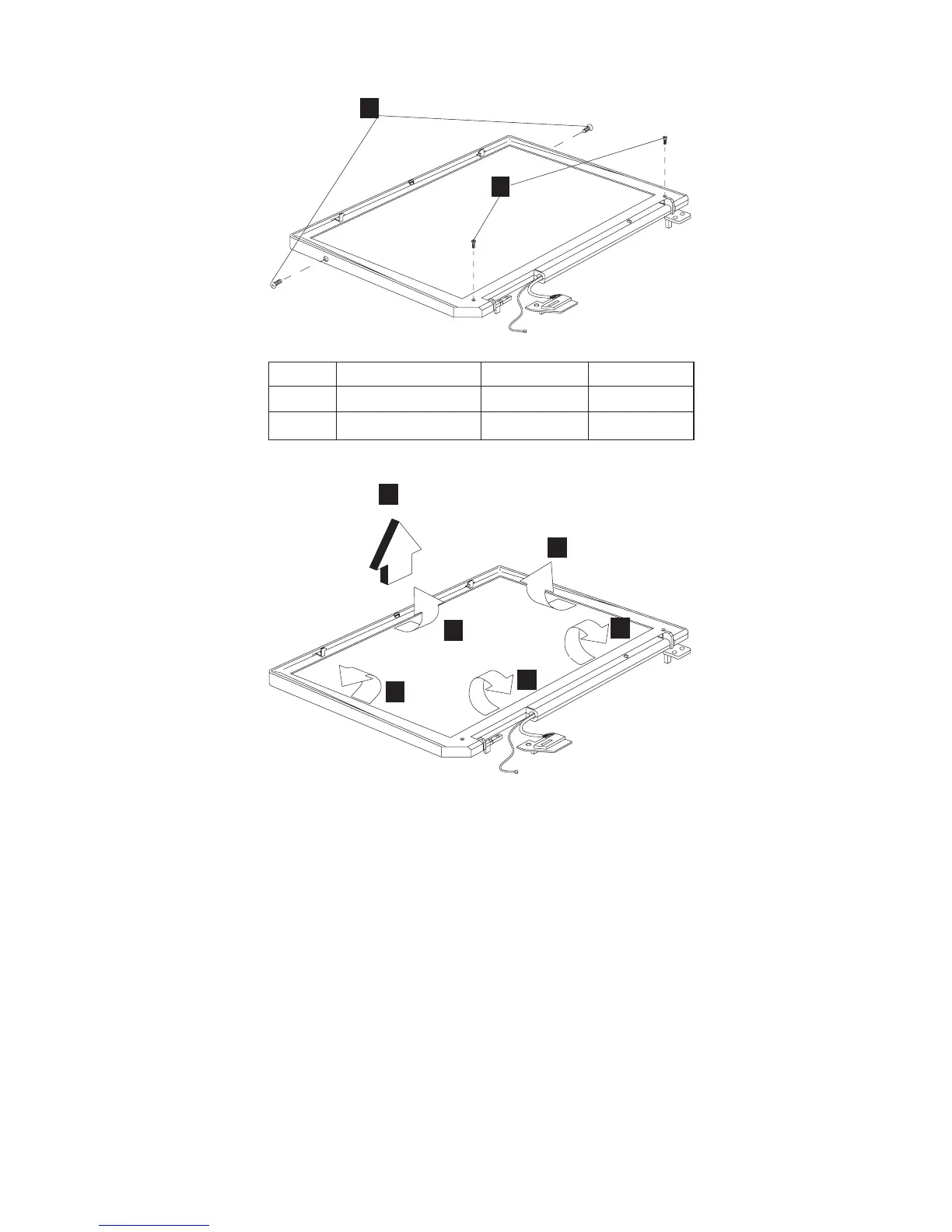

Note: When removing the LCD, take note of the following:
v Be careful not to scratch the LCD bezel when
removing the screw mylars.
v The LCD bezel has several latches. Release
these latches; then remove the LCD bezel. Be
careful not to break these latches.
v Gently push the two LCD latches outward to
remove the LCD bezel.
1220 LCD Inveter (13.3″)
v “1010 Battery assembly” on page 166
v “1020 Mini-PCI cover and Mini-PCI card” on page 166
v “1030 Memory cover and Memory card” on page 168
v “1060 Keyboard” on page 170
v “1080 Middle cover” on page 173
MT 2656, 2657, 2676
