IBM ThinkPad T41 series User Manual

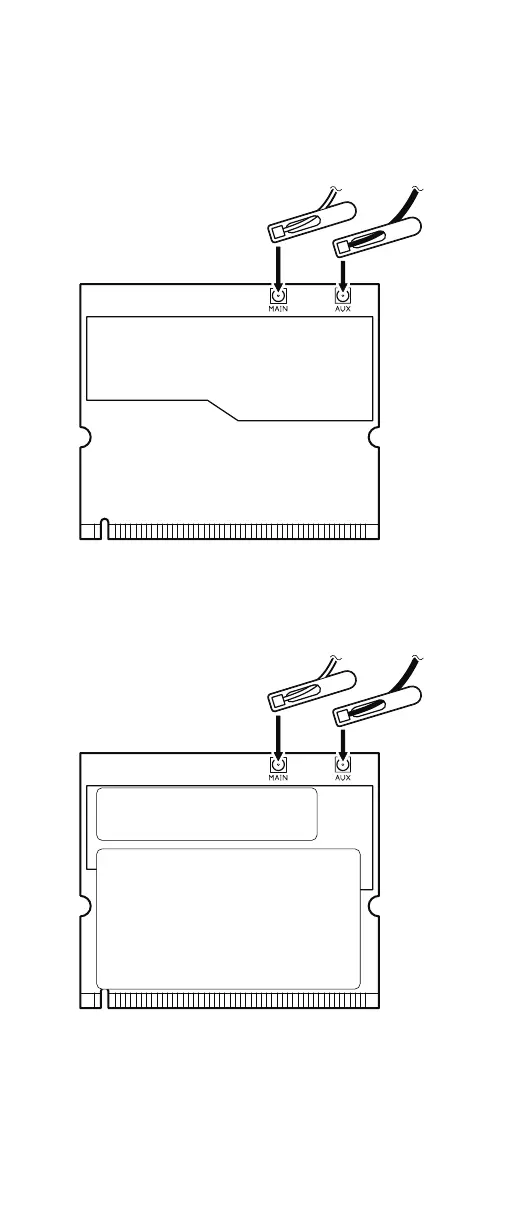

IBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI Adapter
Plug the gray antenna cable with the tab marked MAIN
into jack MAIN, and the black antenna cable with the tab
marked AUX into jack AUX.
MAIN
AUX
IBM 11a/b/g Wireless LAN Mini PCI Adapter
Plug the gray antenna cable with the tab marked MAIN
into jack MAIN, and the black antenna cable with the tab
marked AUX into jack AUX.
MAIN
AU
X
Insert the notched end of the card into the socket, and
then press the card firmly. Pivot the card until it snaps into
place. Make sure that it is firmly fixed in the slot and does
not move easily.
Removing and replacing a FRU
88 MT 2373/2374/2375/2376/2378/2379

IBM ThinkPad T41 series Specifications

General

Operating System	Windows XP Professional
Weight	2.2 kg (4.9 lbs)
Chipset	Intel 855PM
Processor	Intel Pentium M
Display	14.1 inch
RAM	256 MB to 2 GB
Storage	30 GB to 80 GB HDD
Dimensions	311 x 255 x 26-30 mm
Display Resolution	1024x768 (XGA) or 1400x1050 (SXGA+)
Optical Drive	DVD-ROM, CD-RW/DVD-ROM Combo
Wireless	802.11b or 802.11g
Ethernet	10/100 Mbps
Battery	6-cell Li-Ion
Networking	Modem and Ethernet
Ports	2 USB 2.0, VGA, parallel, serial, infrared
Graphics	ATI Mobility Radeon 7500
Hard Drive Interface	Ultra ATA/100
