IBM UPS1000THV User Manual

5
Battery Connection
The battery connector is located on the rear panel (See Con-
necting Equipment and Power to the Uninterruptible Power
Supply).
For battery connection, push the connector into the corre-
sponding port.

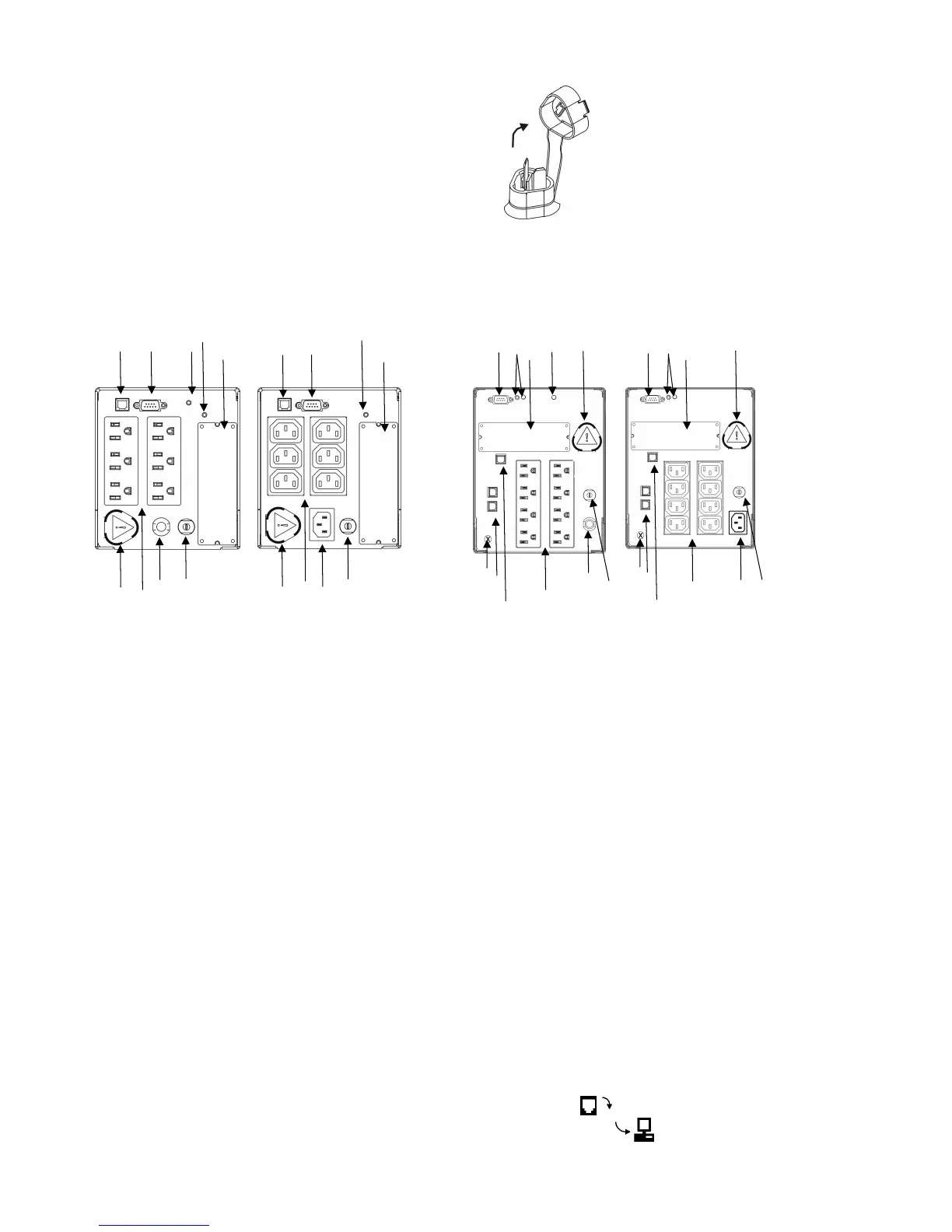

Connecting Equipment and Power to the Uninterruptible Power Supply
REAR PANEL
750TLV
MODEL
750THV
MODEL
1000TLV AND
1500TLV
MODELS
1000THV AND
1500THV
MODELS
INDEX ITEM DESCRIPTION
1 & 2 USB Port & Serial Port Power management software and either USB or serial port commu-
nication with the uninterruptible power supply can be used. Use only
cables supplied or approved by IBM.
Use the supplied serial cable to connect to the serial port. DO
NOT use a standard serial interface cable since it is incompatible
with the uninterruptible power supply connector.
Important: Serial and USB ports cannot be used simultaneously.
3 Site Wiring Fault LED 750TLV, 1000TLV and 1500TLV models only: See Troubleshooting.
4 TVSS Screw
The uninterruptible power supply features a transient voltage surge-
suppression (TVSS) screw for connecting the ground lead on surge
suppression devices such as telephone and network line protectors.
When connecting a grounding cable, disconnect the unit from the
utility power outlet.
5 Smart Slot See Startup.
6 Battery Connector See Battery Connection.
7 Outlet Banks Connect equipment.
8 Input Cord 750TLV, 1000TLV and 1500TLV
models only: See Startup.
9 Circuit Breaker See Troubleshooting.
10 Input Connector 750THV, 1000THV and 1500THV models only: See Startup.
11 Voltage Sensitivity Button and
LED
1000TLV, 1000THV, 1500TLV and 1500THV models only: See User
Configurables.
12 Telephone/Network Surge Sup-
pression Ports
1000TLV, 1000THV, 1500TLV and 1500THV models only: For tele-
phone/network surge suppression, connect a single line telephone or
a 10Base-T/ 100Base-Tx network cable into the RJ-45/RJ-11 tele-
phone/network surge protection port,
, on the back of the unin-
terruptible power supply. Connect from the
port with sup-
plied telephone or network cabling to a fax modem or network port.
2
1
3
6
4
5
9
8
7
2
1
10
6
4
5
9
7
5
2
3
6
4
1
8
9
7
11
12
2
10
6
4
1
5
9
7
11
12
