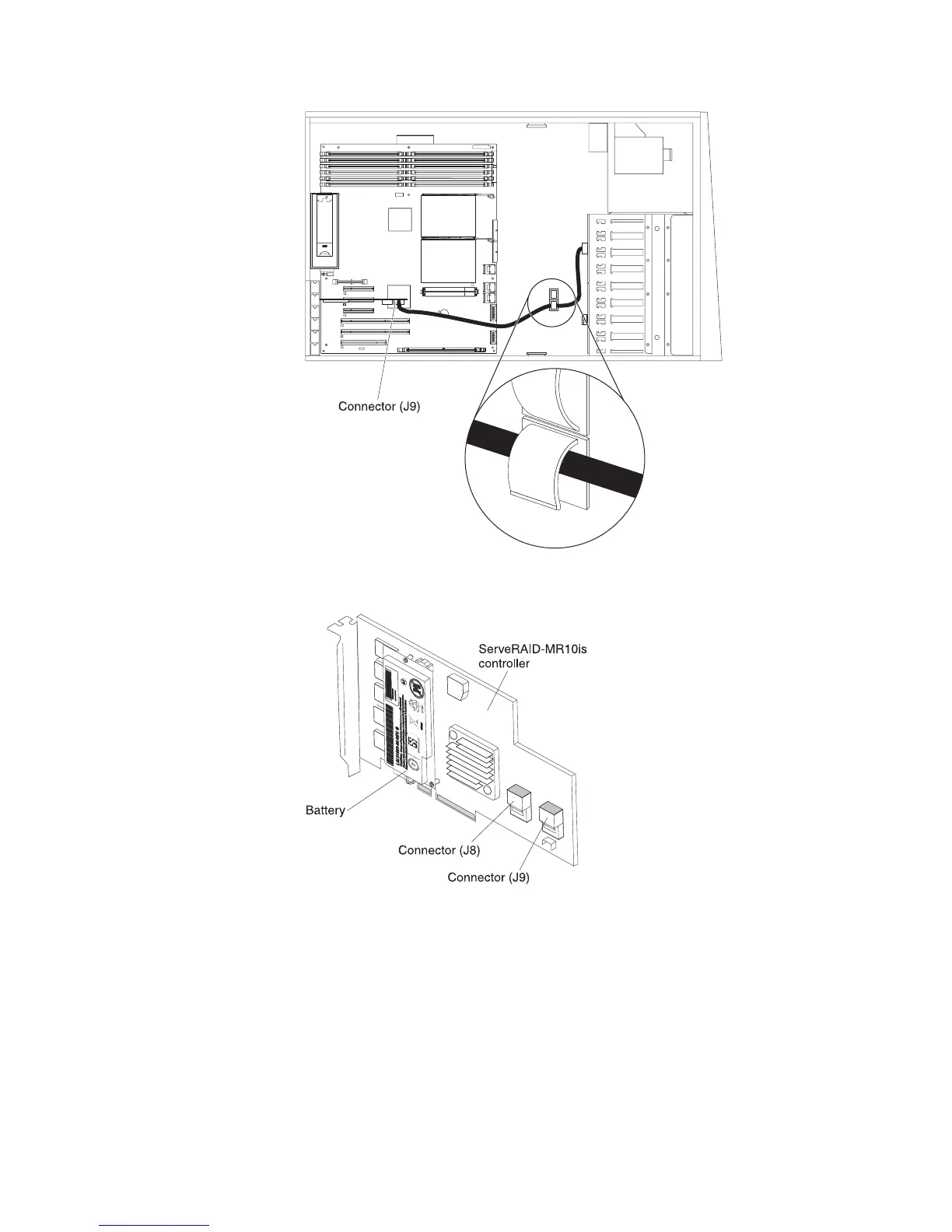

The following illustration shows the connectors on the controller to which you
connect the signal cables from the drive backplanes.
The following illustration shows which end of the cable connects to the
backplane and to the controller.
Chapter 2. Installing options 63
